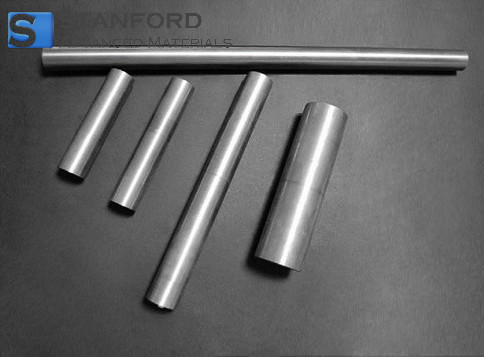

CT2344 HAYNES 188 Bar

Catalogue Number	CT2344
Dimensions	Customized
Material	Cobalt alloy
Shape	Bar

SAM supplies HAYNES 188 (Alloy 188, UNS R30188) rods. They are produced in various sizes and dimensions to support production at your facility. We provide delivery schedules and custom solutions that meet customer specifications.

Other forms of Alloy 188: Tube, Wire, Flange, Plate/Sheet.

INQUIRY

Description

Specification

Element	Percentage by Weight
C	Carbon	0.05 – 0.15%
Mn	Manganese	1.25% max.
Si	Silicon	0.20 – 0.50%
Cr	Chromium	20.0 – 24.0%
Ni	Nickel	20.0 – 24.0%
W	Tungsten	13.0 – 16.0%
La	Lanthanum	0.02 – 0.12%
B	Boron	0.015% maximum
Fe	Iron	Up to 3%
Co	Cobalt	Balance

LAST RECOMMENDATION

NN0247 Nano-Cobalt Powder (Co) (CAS No. 7440-48-4)

CP0248 micro cobalt powder (Co) (CAS No. 7440-48-4)

VD0543 Cobalt (Co)-Evaporation Materials

VD0594 Aluminium-Cobalt (Al/Co) evaporation materials

VD0605 Chromium-Cobalt (Cr/Co) Vapour Deposition Materials

VD0611 Cobalt-Aluminium (Co/Al) Thermal Evaporation Materials

VD0612 Cobalt-Chromium (Co/Cr) vapour deposition materials

VD0613 Cobalt-Iron (Co/Fe) Evaporation Materials

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Density	0.330 lb/in³ 9.14 g/cm³
Melting Range	2375–2425 °F 1300–1330 °C
Specific Heat	0.097 at 70 °F, Btu/lb °F; 405 at 21 °C, J/kg °C
Permeability	1.0007 at 200 oersted
Coefficient of Thermal Expansion	6.6 (0–200 °F), 10⁻⁶ in/in °F
Thermal Conductivity	84 Btu-in/ft²-h-°F; W/m-°C
Electrical Resistivity	613 Ohm-circ mil/ft; 102.0 μΩ-cm

Element	C	Mn	Si	Cr	Ni	W	La	B	Fe	Co
Wt%	0.05-0.15	≤1.25	0.20-0.50	20.0-24.0	20.0-24.0	13.0-16.0	0.02-0.12	≤0.015	≤3	Bal.

Item	Metric	English
Density	8.9 g/cm³	0.32 lbs/in³
Modulus of Elasticity	232 GPa	33.7 Mpsi
Electrical Resistivity	101.0 µohm*m	39.6 µohm*in
Thermal Conductivity	10.4 W/m*°K	72 BTUin/hrft²*°F
Coefficient of thermal expansion	12.1 µm/(m*°C)	6.7 µin/(in*°F)
Melting Point	1330°C	2425°F
