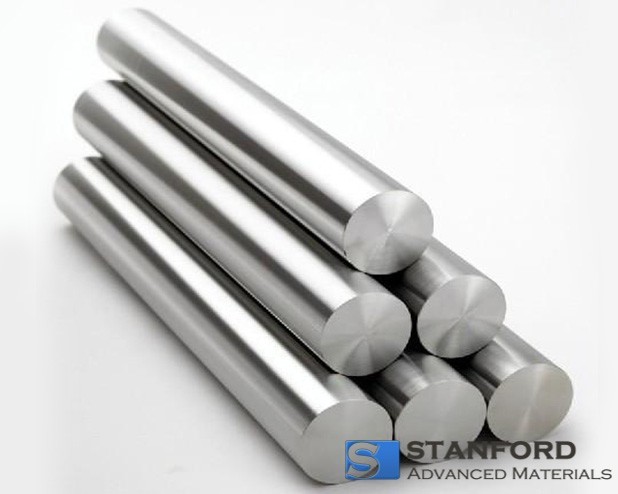

Molybdenum–Rhenium Alloy Bar Description
Rhenium and Molybdenum are high melting point metals that exhibit good ductility and strength. The Molybdenum–Rhenium alloy is produced as a standard alloy containing 47.5% Rhenium and is used in several industrial sectors. The alloy combines the physical high‐temperature performance of Rhenium with the advantageous mechanical properties of Molybdenum. The alloy can be cold worked to 90% of its original shape. The addition of 47.5% or 41% Rhenium increases ductility, weldability and formability significantly. The alloy retains its ductility even after exposure to high temperatures.

Specifications for Molybdenum–Rhenium Alloy Bars
Product |
Composition |
Specifications |
Bar made from Mo-Re Alloy |
Mo-20% Re,
Mo-41% Re,
Mo-44.5% Re,
Mo-47.5% Re
|
Ø: 1–17 mm |
Wire made from Mo-Re Alloy |
Ø: 0.1 mm, 0.2 mm, 0.25 mm, 0.3 mm, 0.35 mm, 0.5 mm |
Foil made from Mo-Re Alloy |
Width: 100 mm |
THK: 0.04 mm |
Thermocouple made from Mo-Re Alloy |
Ø: 0.1 mm, 0.2 mm, 0.25 mm, 0.3 mm, 0.35 mm, 0.5 mm |
Sheets made from Mo-Re Alloy |
Length: 10–350 mm |
Width: 600 mm max. |
THK: 0.2 mm min. |
Applications of Molybdenum–Rhenium Alloy Bars
- Electronics
- Furnaces
- Joining
- Aerospace Industry
- Microwave Communication
- Thermocouple
Specification
Dimensions
|
Dia.: 1-17 mm, Length: Customized
|
Chemical Composition
|
Mo-20%Re,
Mo-41%Re,
Mo-44.5%Re,
Mo-47.5%Re,
or customized
|
Standard
|
ASTM F3273, ASTM B386
|
Material
|
Mo-Re alloy
|
Appearance
|
Silver metallic luster alloy rod
|
Theoretical Mechanical Properties for Rod
Composition
|
Mo-47.5%Re
|
Standard
|
ASTM F3273
|
Condition
|
Annealed
|
Cold-Worked
|
Extra Hard
|
Ultimate Tensile Strength, min (MPa/psi)
|
760 (110,000)
|
1240 (180,000)
|
1380 (200,000)
|
Yield Strength (0.2% offset), min (MPa/psi)
|
480 (70,000)
|
1100 (160,000)
|
1310 (190,000)
|
Elongation, min (%)
|
10
|
12
|
10
|
Reduction of Area, min (%)
|
12
|
40
|
45
|
