AL1753 Aluminum Oxide Crucible Alumina Crucible Al2O3

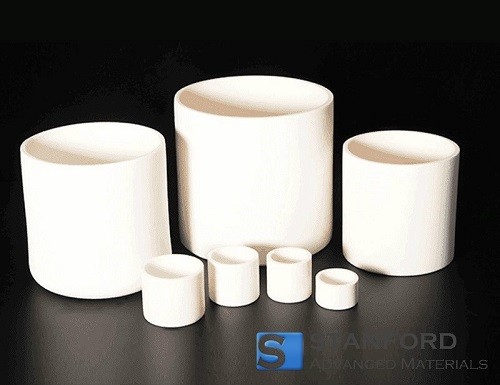

Aluminium Oxide Crucible Alumina Crucible Al2O3 Description

Aluminium oxide crucibles are typically employed in laboratories to hold chemical compounds when subjected to extremely high temperatures. Alumina serves as an ideal ceramic material for laboratory applications, particularly within high-temperature working conditions requiring contamination-free results. Moreover, crucibles and their lids are constructed from high-temperature-resistant materials, generally including ceramic crucibles, alumina crucibles, or inert metal crucibles.

Stanford Advanced Materials provides alumina crucibles with high purity, tight dimensional tolerance, and competitive prices. Our high purity alumina products satisfy most of the requirements.

Aluminium Oxide Crucible Alumina Crucible Al2O3 Specification

The following crucibles are available standard crucibles used in Stanford Advanced Materials. Additional custom sizes are available upon request.
The crucible product code is structured as follows:

Abbreviations and code

* C conical shaped crucibles
* D double wall crucibles
* Ø lip

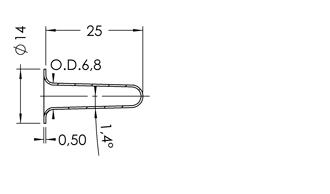

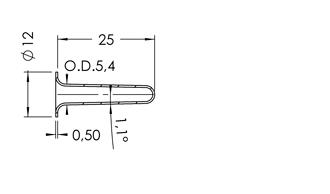

Code: Al2O3 1-12 Capacity: 1cm3	Code: Al2O3 1-14 Capacity: 1cm2

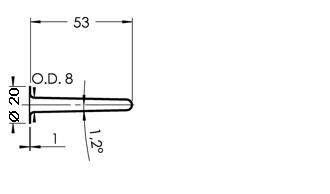

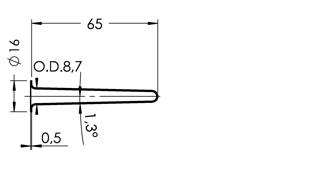

Code: Al2O3 1-20 Capacity: 1.5 cm³	Code: Al2O3 2-16 Capacity: 2cm³

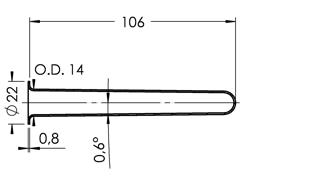

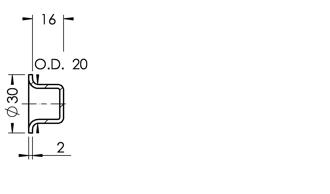

Code: Al2O3 5-30 Capacity: 30 cm³	Code: Al2O3 10-22 Capacity: 22 cm³

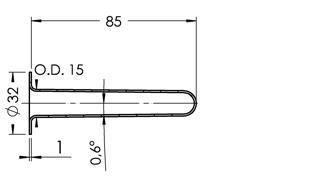

Code: Al2O3 10-32 Capacity: 32 cm³	Code: Al2O3 C12-36 Capacity: 36cm³

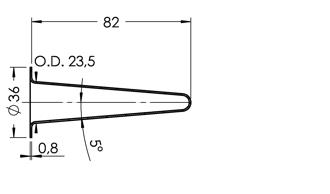

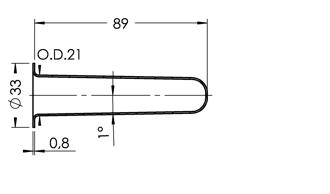

Code: Al2O3 C16-36 Capacity: 36 cm³	Code: Al2O3 C25-33 Capacity: 25 cm³

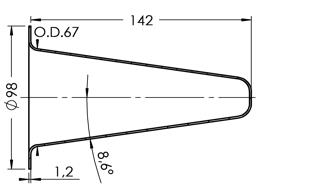

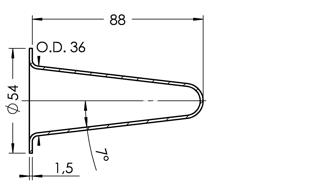

Code: Al2O3 C35-54 Capacity: 35 cm³	Code: Al2O3 C230-98 Capacity: 230 cm³

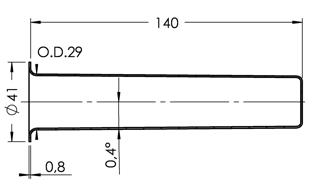

Code: Al2O3 C85-41 Capacity: 85 cm³

Aluminium Oxide Crucible Alumina Crucible Al2O3 Applications

Alumina crucibles may be used for various laboratory metal and non-metal analyses. They can also be employed for combusting colour materials, toners, frits, pigments, luminous materials in shuttle kilns and push plate kilns.

Product Comparison

Alumina Crucible Packing

Our products are packaged in customised cartons of various sizes based on the material dimensions. This product includes magnets securely packed with shielding materials to minimise magnetic field leakage. All packages are reinforced with protective layers to ensure safe handling and compliance with international transport regulations. We ensure strict adherence to packaging customisation and the use of appropriate cushioning materials to provide optimal protection during transportation.

Packaging: Carton, Wooden Box, or Customised.

Aluminium Oxide Crucible Alumina Crucible Al2O3 FAQs

Q1: What are the typical applications of Aluminium Oxide Crucibles?

Laboratories: For melting, mixing, and heating materials in high-temperature experiments.

Metallurgy: Employed in the melting of metals and alloys.

Chemical Analysis: For sample preparation and as containers in chemical reactions.

Ceramics: Serving as moulds or supports in sintering processes.

Glass Manufacturing: For testing or holding molten glass.

Q2: What shapes and sizes are available for Aluminium Oxide Crucibles?

They are available in various shapes such as cylindrical, conical, or rectangular. Sizes range from a few millilitres to several litres, depending on the application.

Q3: Can Aluminium Oxide Crucibles be customised?

Yes, they may be customised in terms of shape, size, and purity levels to meet specific application requirements.
