IR0888 Iridium Plate/Sheet

Iridium Plate/Sheet Description

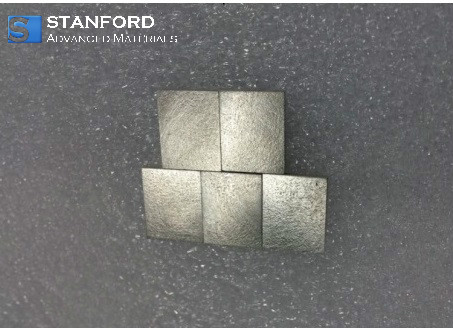

Iridium plates and iridium sheets are available from Stanford Advanced Materials (SAM). The iridium plate and iridium sheet are manufactured from iridium. Iridium is a metal from the platinum group with atomic number 77. Iridium is a very hard and brittle metal with a silvery colour. Iridium exhibits high corrosion resistance even at temperatures up to 2 000°C. Iridium is used as the tip material for spark plugs and has been utilised in the fabrication of melting crucibles for the manufacture of synthetic crystals.

Iridium Plate/Sheet Specifications

Typical Chemical Analysis

Electrical Properties

Electrical resistivity (µΩ·cm): 5.1 @20°C
Critical superconducting temperature (K): 0.1100
Temperature coefficient (K⁻¹): 0.00450 @0–100°C
Thermal EMF against Pt (cold 0°C – hot 100°C) (mV): 0.65

Mechanical Properties

Elastic modulus (GPa) (hard): 371.0
Elastic modulus (GPa) (soft): 371.0
Vickers hardness (kgf mm⁻²) (hard): 650
Vickers hardness (kgf mm⁻²) (soft): 200 – 300
Condition: Soft
Material state: Hard
Poisson's ratio (hard): 0.260
Poisson's ratio (soft): 0.260
Tensile modulus (GPa) (hard): 528.00
Tensile modulus (GPa) (soft): 528.00
Tensile strength (MPa) (hard): 1200.00
Tensile strength (MPa) (soft): 550.00 – 1100.00

Thermal Properties

Coefficient of thermal expansion (×10⁻⁶ K⁻¹): 6.800 @0–100°C
Latent heat of vapourisation (J g⁻¹): 3186
Latent heat of fusion (J g⁻¹): 135.00
Specific heat capacity (J K⁻¹ kg⁻¹): 133.0 @25°C
Thermal conductivity (W m⁻¹ K⁻¹): 147.00 @0–100°C

Applications of Iridium Plates/Sheets

1. Aerospace: Iridium plates are employed for the fabrication of spacecraft components, engine parts and missile components in high-temperature environments.

2. Scientific Research: In scientific instrumentation, iridium sheet is used in the production of experimental instruments such as mass spectrometers and laboratory reactors.

3. Semiconductor Manufacturing: In the semiconductor industry, iridium plates/sheets are utilised for producing components such as masks, substrates and electrodes, thereby maintaining device performance.

4. High-temperature Heaters: Iridium is used in the production of high-temperature heating elements such as furnace heaters and vacuum oven parts, given its melting point of 2 000°C and resistance to heat.

5. Medical Devices: Iridium plates are utilised in the manufacture of medical devices such as radiotherapy systems and laser surgical instruments.

6. Chemical Industry: Iridium plates/sheets are applied in chemical reactors and piping systems, given their stability and corrosion resistance.

Packaging of Iridium Plates and Sheets

Iridium plates and sheets are handled with care in order to prevent damage during storage and transport, thereby maintaining product integrity.
