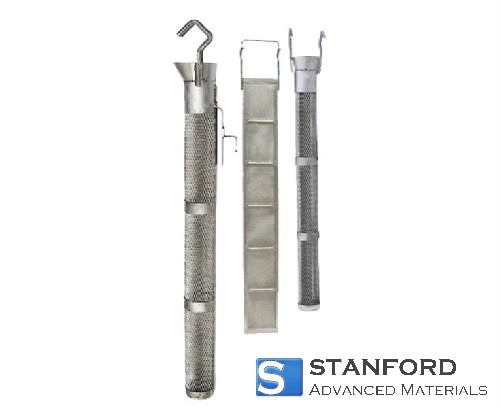

Description of the Anode Basket
The anode basket is lightweight, corrosion‐resistant and features an oxide layer on its surface. Under standard galvanising conditions, the oxide layer may prevent current from flowing through the basket and instead direct the current to the anode material contained within it.
The galvanised anode basket has the following properties:
- The structure is stable, current distribution is uniform and coating consistency is maintained.
- Good anodic solubility, which results in reduced accumulation of anode sludge.
- Loading or refilling the anode material is straightforward, and maintenance is relatively simple.
- Manufactured using a quality substrate material, the anode exhibits an extended service life and supports high current density.
Specifications of the Anode Basket
|
Standard Basket Length
|
18", 24", 30", 36", 42", 48"
|
|
Hook Length
|
3", 4", 5", 6", 7", 8"
|
|
Mesh Types
|
Large Expanded – 1/2" SWD x 1-1/4" LWD (75% open mesh area)
Mini Expanded – 3/16" SWD x 1/2" LWD (65% open mesh area)
Perforated – 1/2" diameter at 11/16" staggered centres (50% open mesh area)
Perforated Polypropylene – Ø 1/4" at 3/8" staggered centres (40% open mesh area)
|
|
Current Carrying Capacity per Hook
|
100 AMP – 1/2" x 1" Double knife-edge
100 AMP – 3/4" Square Hook
25 AMP – 1/8" x 1" Double knife-edge
25 AMP – 3/8" Square Hook
50 AMP – 1/2" Square Hook
50 AMP – 1/4" x 1" Double knife-edge
75 AMP – 3/8" x 1" Double knife-edge
75 AMP – 5/8" Square Hook
|
|
Basket Material
|
Niobium
Tantal
Titan
Zirkonium
|
|
Sizing Requirements
|
The baskets should be between 2" and 4" shorter than the longest workpiece. The baskets must be positioned 1" above the solution level. The hook length is measured from the top of the anode rod to 1" above the solution level. For rectangular baskets, three (3) baskets measuring 2 1/2" x 6" per 2 feet of rod are recommended. For further enquiries or customised products, please contact us.
|
Application of Anode Baskets
Loading of anodes in the galvanising process
Packaging of Anode Baskets
The anode baskets are externally marked and labelled in order to facilitate identification and quality control. Measures are implemented to ensure that no damage occurs during storage or transport.
Specification
|
Standard stock length
|
18", 24", 30", 36", 42", 48"
|
|
Length of hook
|
3", 4", 5", 6", 7", 8"
|
|
Mesh types
|
Large Expanded - 1/2" SWD x 1-1/4" LWD (75% mesh open area)
Mini-Expanded - 3/16" SWD x 1/2" LWD (65% mesh open area)
Perforated - 1/2" dia. on 11/16" staggered centers (50% mesh open area)
Perforated Polypropylene - 1/4" dia. on 3/8" staggered centers (40% mesh open area)
|
|
Amperage rating per hook
|
100AMP - 1/2" x 1" Double Knife Edge
100AMP - 3/4" Square Hook
25AMP - 1/8" x 1" Double Knife Edge
25AMP - 3/8" Square Hook
50AMP - 1/2" Square Hook
50AMP - 1/4" x 1" Double Knife Edge
75AMP - 3/8" x 1" Double Knife Edge
75AMP - 5/8" Square Hook
|
|
Basket material
|
Niobium
Tantalum
Titanium
Zirconium
|
|
Sizing
|
Baskets should be 2" to 4" shorter than the longest piece of work.
Baskets should be 1" above the solution level.
Hook length is measured from the top of the anode bar to 1" above the solution level.
Quantities for rectangular baskets should be three (3) 2 1/2" x 6" baskets for every 2 feet above the bar.
For further questions or customized products please feel free to contact us
|
*Please provide a drawing to receive a quote.
