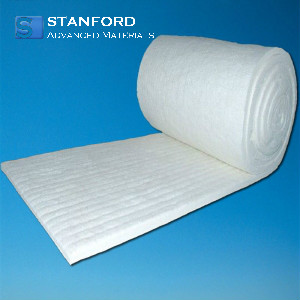

CF2516 Aluminium Silicate Jet Fibre Deck

Catalogue Number	CF2516
Bulk Density	96-160 kg/m3 g/cm3
Operating Temperature	950-1360 °C

Aluminiumsilikat-Fibre Blanket is a fire‐resistant material. It is used in industrial processes and everyday applications due to its measured properties. SAM has more than 20 years’ experience in manufacturing Aluminiumsilikat-Jet-Fibre Blanket.

INQUIRY

Description

Specification

Reviews

LAST RECOMMENDATION

YSZ1870 Yttrium oxide-stabilised zirconium dioxide nanopowder (YTZP/YSZ nanopowder)

SC0892 High-Purity Silicon Carbide Powder (SiC powder) (CAS No. 409-21-2)

SC0893 Silicon Carbide Bearing (SiC Bearing)

SC0894 Silicon Carbide Sealing Ring (SiC-Ring)

SC0895 Silicon Carbide Spheres (SiC Spheres)

SC0896 Silicon carbide plate (SiC plate)

SC0897 Silicon Carbide Nozzle (SiC Nozzle)

SC0908 Silicon Carbide Tube, SiC Tube

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

I would like to join the mailing list to receive updates from Stanford Advanced Materials.

Please enclose drawings:

Save files here or

* Check Code

Accepted file types: PDF, png, jpg, jpeg. Upload multiple files at once; each file must be under 2MB.

		Standard	Model H	High Purity	High Alumina	Type ZA
		Model STD	Model HP	Model HA	—
		SAMSC-201	SAMSC-202	SAMSC-203	SAMSC-204	SAMSC-205
Colour Classification		white	white	white	white	white
Temperature Classification °C		1 000	1 100	1 200	1 260	1 400
Working Temperature °C		<950	1 000	1 100	1 200	1 360
Bulk Density kg/m³		96/128/160	96/128/160	96/128/160	128/160	128/160
Permanent Linear Shrinkage (%) (24h, 128 kg/m³)		-4	-3	-3	-3	-3
Permanent Linear Shrinkage (%) (24h, 128 kg/m³)		1 000°C	1 000°C	1 100°C	1 260°C	1 360°C
Thermal Conductivity at various Temperatures W/m·K (128 kg/m³)		0.09 (400°C) 0.16 (800°C)	0.09 (400°C) 0.16 (800°C) 0.20 (1 000°C)	0.09 (400°C) 0.16 (800°C) 0.20 (1 000°C)	0.12 (600°C) 0.20 (1 000°C)	0.12 (800°C) 0.20 (1 000°C)
Tensile Strength MPa (128 kg/m³)		0.04	0.04	0.04	0.04	0.04
Chemical Composition in %	Al₂O₃	44	46	47–49	52–55	32–33
	Al₂O₃+SiO₂	96	97	99	99	—
	ZrO₂	—	—	—	—	15–17
	Fe₂O₃	<1.2	<1.0	0.2	0.2	0.2
	Na₂O+K₂O	≤0.5	≤0.5	0.2	0.2	0.2

		Ordinary	Standard	High purity	High alumina	Zirconium
		model STD	Model H	Model HP	Model HA	Type ZA
		SAMSC-201	SAMSC-202	SAMSC-203	SAMSC-204	SAMSC-205
Color classification		white	white	white	white	white
Classification temperature°C		1000	1100	1200	1260	1400
working temperature°C		<950	1000	1100	1200	1360
bulk density kg/m³		96/128/160	96/128/160	96/128/160	128/160	128/160
Permanent Line Shrinkage%(24hr, 128 kg/m³)		-4	-3	-3	-3	-3
Permanent Line Shrinkage%(24hr, 128 kg/m³)		1000°C	1000°C	1100°C	1260°C	1360°C
Thermal Conductivity at Different Temperature PlanesW/m.k(128 kg/m³)		0.09(400°C) 0.16(800°C)	0.09(400°C) 0.16(800°C) 0.20(1000°C)	0.09(400°C) 0.16(800°C) 0.20(1000°C)	0.12(600°C) 0.20(1000°C)	0.12(800°C) 0.20(1000°C)
Tensile strength Mpa (128 kg/m³)		0.04	0.04	0.04	0.04	0.04
chemical composition %	Al₂O₃	44	46	47-49	52-55	32-33
	Al₂O₃+SiO₂	96	97	99	99	-
	ZrO₂	-	-	-	-	15-17
	Fe₂O₃	＜1.2	＜1.0	0.2	0.2	0.2
	Na₂O+K₂O	≤0.5	≤0.5	0.2	0.2	0.2
