Wire Rope Assemblies Description:
Wire Rope Assemblies play a critical role in the aerospace sector and in military applications. Stanford Advanced Materials (SAM) has considerable experience in manufacturing and supplying Wire Rope Assemblies, thereby ensuring that every assembly provided by SAM meets strict construction quality standards and is offered at a competitive price.
Wire Rope Assemblies Specifications:

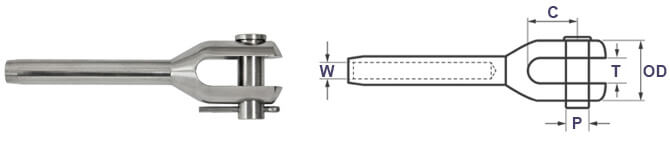

1. Fork-type Wire Rope Assembly

W (Wire Rope)
|
C (mm)
|
P (mm)
|
T (mm)
|
Outer Diameter (mm)
|
3mm
|
13
|
6
|
6.3
|
14.3
|
4 mm
|
16
|
8
|
8
|
18
|
5 mm
|
19
|
9.5
|
10
|
22.2
|
6 mm
|
22
|
11
|
11
|
25.4
|
8 mm
|
28
|
14
|
14
|
34.9
|
10 mm
|
32
|
16
|
16
|
38.1
|

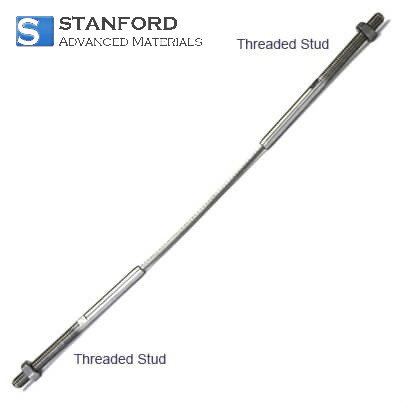

2. Stud-type Wire Rope Assembly

Options
|
Wire Ø
|
Thread
|
Bolt Length
|
Thread Length
|
Bolt Ø
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
3mm x M6 Assembly
|
3
|
M6
|
100
|
48
|
6.4
|
4mm x M6 Assembly
|
4
|
M6
|
110
|
48
|
7.5
|
4mm x M8 Assembly
|
4
|
M8
|
113
|
54
|
7.5
|
5mm x M8 Assembly
|
5
|
M8
|
124
|
57
|
9
|
6mm x M10 Assembly
|
6
|
M10
|
145
|
63
|
12.6
|
8mm x M12 Assembly
|
8
|
M12
|
180
|
80
|
16
|
8mm x M16 Assembly
|
8
|
M16
|
200
|
100
|
16
|
3 ) Eye-type Wire Rope Assembly
Options
|
Wire Ø
|
Eye Bore Ø (mm)
|
Eye Overall Ø (mm)
|
(mm)
|
(mm)
|
(mm)
|
3mm Eye Assembly
|
3
|
6.5
|
14
|
4mm Eye Assembly
|
4
|
8.5
|
19
|
5 mm Eye Assembly
|
5
|
10.5
|
21
|
6mm Eye Assembly
|
6
|
12.5
|
28
|
8mm DS Eye Assembly
|
8
|
14.28
|
28
|
8mm Eye Assembly
|
8
|
14.5
|
32
|

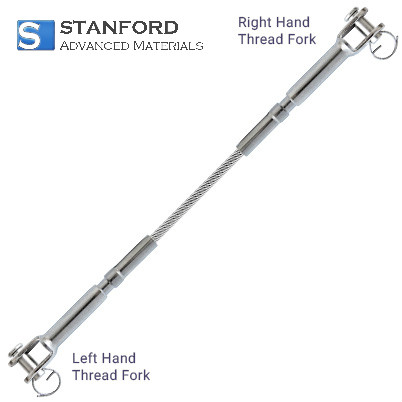

4. Adjustable Wire Rope for the Fork

Options
|
Wire Ø
|
Rope Construction
|
Thread
|
Jaw Width (mm)
|
Pin Ø
|
(mm)
|
(mm)
|
(mm)
|
5mm x M8 Fork Assembly
|
5
|
1 x 19
|
M8
|
10
|
8
|

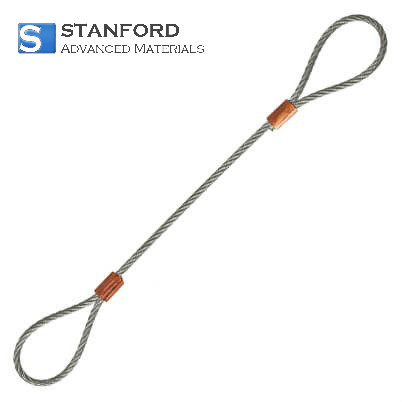

5 Wire Rope Sling with Soft Eye

Options
|
Wire (mm)
|
SWL (kg)
|
H (mm)
|
(mm)
|
(kg)
|
(mm)
|
1,5 mm Lifting Sling
|
1.5
|
17.04
|
20
|
2mm Sling
|
2
|
28
|
30
|
3mm Sling
|
3
|
64
|
45
|
4mm Sling
|
4
|
112.8
|
45
|
5mm Sling
|
5
|
176.8
|
75
|
6mm Sling
|
6
|
256
|
90
|
8mm Sling
|
8
|
454.4
|
120
|
6 Wire Rope Sling with Hard Eye

Options
|
Wire (mm)
|
SWL (kg)
|
W (mm)
|
H (mm)
|
(mm)
|
(kg)
|
(mm)
|
(mm)
|
1,5 mm Sling
|
1.5
|
17.04
|
7
|
13
|
2mm Sling
|
2
|
28
|
7
|
13
|
3mm Sling
|
3
|
64
|
10
|
17
|
4mm Sling
|
4
|
112.8
|
11
|
18
|
5mm Sling
|
5
|
176.8
|
13
|
23
|
6mm Sling
|
6
|
256
|
15
|
27
|
8mm Sling
|
8
|
454.4
|
18
|
33
|
Wire Rope Assemblies Applications:
The Wire Rope Assemblies are employed for ship rigging, architectural tension cables, structural tension members, landscape construction cables, horticulture, balustrade tension cable infill, sign suspension, and lifting as well as overhead line applications.
