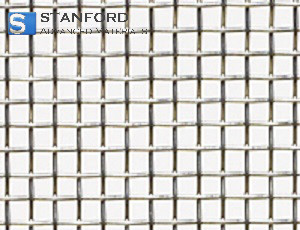

NC2342 Inconel 718 wire mesh

Catalogue Number	NC2342
Shape	Mesh
M.O.Q	$2000-$5000
Composition	Inconel Alloy

Manufacturers produce Inconel 718 wire mesh from Inconel 718 alloy. Mechanical tests verify that the mesh meets the tensile strength and oxidation resistance specifications established by industry standards. Engineers utilise the mesh for aerospace and high temperature industrial applications. Stanford Advanced Materials (SAM) supplies a range of specialised alloys including Inconel, Incoloy, Monel, Hastelloy, HAYNES and NIMONIC.

Other forms of Inconel 718: Bar, Wire, Flange, Tube,

Related products: Monel 400 wire mesh, Brass wire mesh, Copper wire mesh.

INQUIRY

Description

Specification

SDS

Element	Weight Percentage
C	Carbon	0.08 maximum
Mn	Manganese	0.35 maximum
P	Phosphorus	0.015 maximum
S	Sulphur	0.015 maximum
Si	Silicon	0.35 maximum
Cr	Chromium	17.00 - 21.00
Ni	Nickel	50.00 - 55.00
Mo	Molybdenum	2.80 - 3.30
Nb	Niobium	4.75 - 5.50
Ti	Titanium	0.65 - 1.15
Al	Aluminium	0.20 - 0.80
Co	Cobalt	1.00 maximum
B	Boron	0.006 maximum
Cu	Copper	0.30 maximum
Ta	Tantalum	0.05 maximum
Fe	Iron	Balance

Element	Percent by Weight
C	Carbon	0.08 maximum
Mn	Manganese	0.35 maximum
P	Phosphorus	0.015 maximum
S	Sulfur	0.015 maximum
Si	Silicon	0.35 maximum
Cr	Chromium	17.00 - 21.00
Ni	Nickel	50.00 - 55.00
Mo	Molybdenum	2.80 - 3.30
Nb	Columbium	4.75 - 5.50
Ti	Titanium	0.65 - 1.15
Al	Aluminum	0.20 - 0.80
Co	Cobalt	1.00 maximum
B	Boron	0.006 maximum
Cu	Copper	0.30 maximum
Ta	Tantalum	0.05 maximum
Fe	Iron	Balance

LAST RECOMMENDATION

NC1191 Inconel 625 (Alloy 625, UNS N06625) Flange

NC1213 Inconel 718 (Alloy 718, UNS N07718) Wire

NC1214 Inconel 718 (Alloy 718, UNS N07718) rod/bar

NC1215 Inconel 718 (Alloy 718, UNS N07718) Plate/Sheet

NC1216 Inconel 718 (Alloy 718, UNS N07718) pipe/pipe

NC1217 Inconel 718 (Alloy 718, UNS N07718) Flange

DP2785 Inconel 718 Powder (Alloy 718, UNS N07718)

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Specifications	ASTM B637
Density	0.296 lbs/in³
Tensile Strength	140 Kpsi*
Maximum Operating Temperature	1800 - 2000°F
Density of Annealed and Aged Alloy 718	0.297 lb/in³
Melting Point	2300-2437°F, 1260-1336°C
Specific Heat at 70°F, Btu/lb°F	0.104 (435)
Curie Temperature for Annealed Welded Alloy	<-320°F, <-196°C
Curie Temperature of Annealed and Aged Alloy	-170°F (-112°C)
Magnetic Permeability at 200 Oersted and 70°F for Annealed Material	1.0013
Electrical Resistivity	Approximately 753 Ohm mil/ft, annealed at 1800°F for 1 hour at 70°F
Modulus of Elasticity	29.6 x 10^6 psi or 208 x 10^3 MPa at 70°F or 21°C
Coefficient of Thermal Expansion	7.1 x 10^(-6) per °F or 12.8 x 10^(-6) per °C
0.2% Yield Strength	170 ksi or 1172 MPa at 200°F or 93°C
Elongation in 2 inches	21% at 200°F or 93°C
