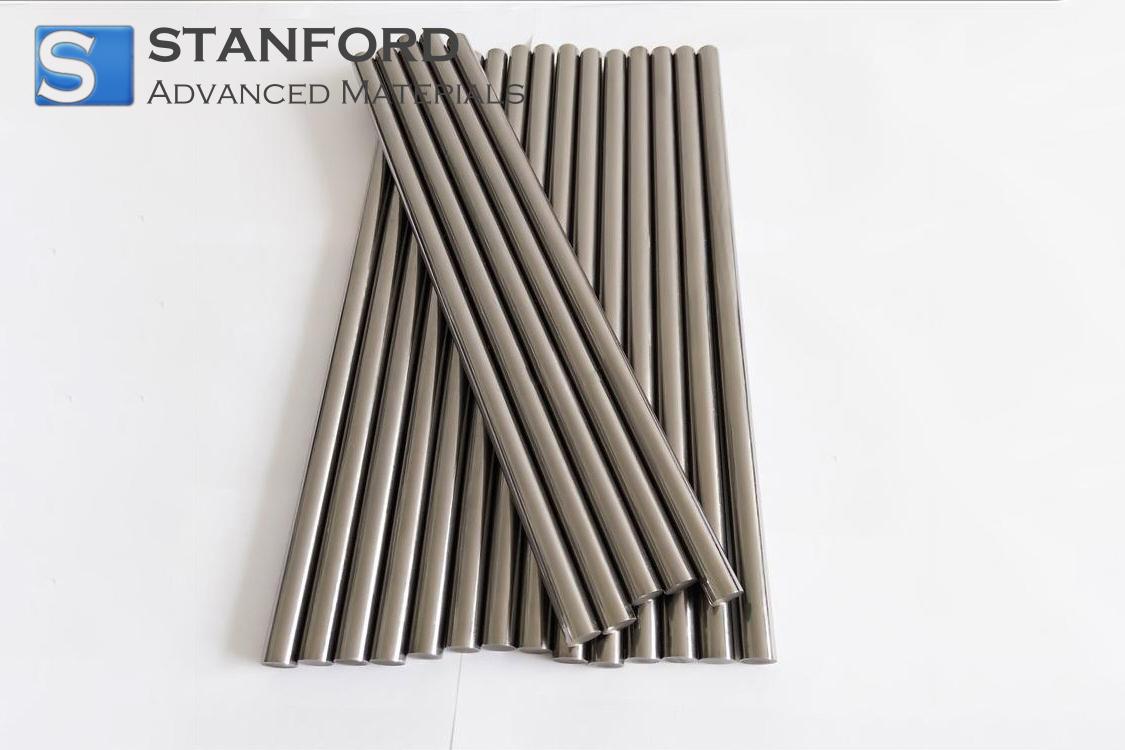

TA7160 Tantalum Bar, Tantalum Rod UNS R05400, Dia. 3.175 mm

Tantalum Bar, Tantalum Rod UNS R05400, Dia. 0.125" Description

Tantalum Rod UNS R05400, with a precision diameter of 0.125" (3.175 mm) and customizable length, offers outstanding corrosion resistance and high-temperature stability. Under the ASTM B365 standard, this rod consistently demonstrates superior mechanical strength and ductility, making it a reliable choice for challenging applications. Tantalum’s unique properties, such as its remarkable resistance to acid attack and favorable thermal conductivity, ensure long-term performance and minimal maintenance requirements. Commonly employed in sectors including chemical processing, aerospace, and medical device manufacturing, Tantalum Rod UNS R05400 supports stringent quality demands across numerous industries. Its ability to maintain structural integrity in extreme environments makes it ideally suited for reaction vessels, heat exchangers, and high-vacuum systems. Our commitment to tight tolerances and rigorous quality control guarantees a product that meets or exceeds your application’s requirements.

Tantalum Bar, Tantalum Rod UNS R05400, Dia. 0.125" Applications

Tantalum bar and rod products, particularly those conforming to UNS R05400 specifications with a precise diameter of 0.125", offer remarkable performance in demanding environments. Valued for their high melting point, superior corrosion resistance, and excellent ductility, tantalum materials are employed across various industries where reliable operation is vital. Below are some of the most notable applications of this highly versatile metal.

1. Electronics Applications

·         Capacitor Components: Tantalum’s high dielectric strength ensures efficient energy storage and stable performance in miniaturized electronic circuits.

·         Semiconductor Equipment: Tantalum’s superconductive and thermal stability properties make it an ideal choice for ion implantation and sputtering processes.

2. Chemical Processing Applications

·         Corrosion-Resistant Reactors: Tantalum’s exceptional chemical inertness helps safeguard reaction vessels from corrosive substances.

·         Protective Liners: Due to its robust resistance to acids, tantalum is frequently used as a lining material for pipes, tanks, and other process equipment.

3. Aerospace Applications

·         Heat-Resistant Components: Tantalum’s high melting point ensures thermal reliability in turbine engines and re-entry systems.

·         Structural Elements: Tantalum’s strength-to-weight ratio contributes to improved durability and performance in critical aerospace assemblies.

Tantalum Bar, Tantalum Rod UNS R05400, Dia. 0.125" Packaging

These Tantalum Bar, Tantalum Rod UNS R05400, Dia. 0.125” items are individually wrapped in corrosion-inhibiting poly film or sealed in vacuum packaging. For added cushion and safeguarding, foam or bubble wrap is used to prevent physical damage during transit. A specialized anti-corrosion agent is applied to maintain metal purity, while labeling ensures quick identification. Customized packaging solutions are available to accommodate unique specifications and shipping requirements.

Packaging: Vacuum sealed, Wooden Box, or Customized.

Tantalum Bar, Tantalum Rod UNS R05400, Dia. 0.125" FAQs

Q1: What are the key material properties of Tantalum Bar, Tantalum Rod UNS R05400, Dia. 0.125"?
A1: Tantalum Bar, Tantalum Rod UNS R05400 at this diameter offers high corrosion resistance, notably in acidic and high-temperature environments. Its melting point exceeds 2,900°C, ensuring excellent thermal stability. The metal also exhibits a low vapor pressure, superior ductility, and minimal mechanical deformation under stress. Additionally, its biocompatibility makes it suitable for medical applications, while its high electrical conductivity supports critical electronic components.
Q2: How can this tantalum product be processed or fabricated?
A2: Tantalum Rod UNS R05400, Dia. 0.125" can be machined through standard metalworking techniques, including turning, milling, and drilling, although special tooling might be required due to its density and hardness. Vacuum or inert atmosphere welding is recommended to preserve its purity and reduce contamination risk. Cold working processes can be employed for dimensional precision, but careful heat treatment is critical to maintain ductility and avoid embrittlement.
Q3: Which quality standards and certifications apply to Tantalum Bar, Tantalum Rod UNS R05400, Dia. 0.125"?
A3: Tantalum Bar, Tantalum Rod products typically conform to ASTM B365 or ASTM F560 specifications, depending on their intended application. They often come with mill test reports (MTRs) verifying chemical composition, mechanical properties, and purity levels. ISO 9001 and AS9100 certifications may be held by manufacturers to ensure consistent production standards, traceability, and quality control. Additional certifications can include ROHS and REACH compliance, as required by end-use regulations.

Related Information

1. Raw Materials - Tantalite

Tantalum is a rare metal, making up only about 0.0002% of the Earth’s crust. It is primarily sourced from tantalite ore, which is found in pegmatite formations and alluvial deposits. Stanford Advanced Materials sources high-grade tantalite from ethical mining operations, ensuring compliance with Conflict-Free Minerals regulations.

2. Recycling of Scrap Materials

Tantalum Recycling of Scrap. The recycling process involves collecting scrap from various sources, including end-of-life electronic components, manufacturing waste, and obsolete equipment containing tantalum parts.
