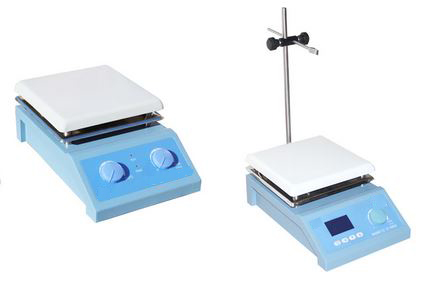

Features of SAM Ceramic Magnetic Stirrer:
- The extended exterior and lid prevent leakage;
- Heating and stirring occur concurrently;
- The enclosed heating plate is equipped with flame protection, rapid temperature increase, and long service life;
- Heating and stirring occur concurrently with a continuously variable speed adjustment;
- Contains an adjustable PT100 sensor bracket and stainless steel bars.
Specifications:
Model
|
Power (W)
|
Voltage (V)
|
External Dimensions (mm)
|
Speed (r/min)
|
Maximum Volume (ml)
|
Plate Size (mm)
|
Plate Maximum Temperature (°F)
|
STCMS-A
|
600
|
110
|
300×190×126
|
-
|
5 000
|
190×190
|
716
|
STCMS-B
|
-
|
100 to 2000
|
-
|
STCMS-C(Digital A)
|
600
|
572±10%
|
STCMS-C(Digital B)
|
600
|
STCMS-C(Digital C)
|
600
|
The digital types incorporate the following additional functions:
1. Temperature can be set accurately and the stirring speed is continuously adjustable.
2. A large LCD screen with backlighting is provided.
3. The current temperature and speed are displayed concurrently.
4. A PT100 sensor ensures accurate temperature measurement.
Note: The digital model is available in three variants. Digital A utilises an internal sensor to measure the temperature of the ceramic heating plate. Digital B utilises an external sensor to monitor the liquid temperature. Digital C utilises both internal and external sensors to measure the temperatures of the ceramic heating plate and the liquid.
Application:
Ceramic magnetic stirrers may be employed for heating and stirring liquids in sectors such as agriculture, healthcare, medicine, scientific research and academic laboratories.
