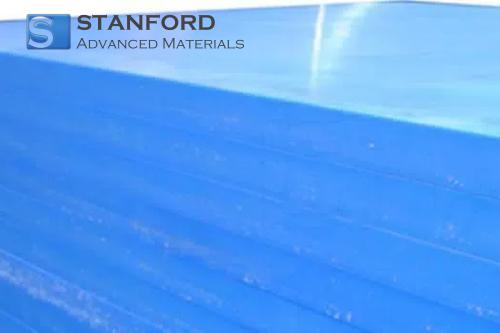

CB6953 Monomer Casting Nylon (MC Nylon)

Monomer Casting Nylon (MC Nylon) Description

Monomer Casting Nylon (MC Nylon) is produced by cast polymerisation. This process yields a semi‐crystalline structure with measurable molecular alignment. The material exhibits a tensile strength of 75–85 MPa, a compressive strength of 90–100 MPa and a flexural strength of 100–110 MPa, with a Shore D hardness of 83. It elongates more than 25% before fracture, thereby providing impact resistance. Thermally, it is rated for continuous operation from –40°C to 115°C and for intermittent operation up to 180°C, with a melting point of 220°C. A low linear expansion (5–8×10⁻⁵ K⁻¹) is recorded, thereby maintaining dimensional stability during thermal cycling.

Electrically, MC Nylon functions as an insulator. It shows a volume resistivity of 10¹⁵ Ω·cm, a surface resistivity of 10¹⁵ Ω, a dielectric strength of ≥25 kV/mm and a dielectric constant of 3.7. The material complies with UL 94 V-0 flammability standards and meets FDA/EEC non-toxicity requirements. It has been shown to offer wear resistance and low friction, thereby reducing energy loss in moving parts. Chemically, it resists oils, alcohols and weak acids but degrades in strong oxidising agents. MC Nylon is machinable into precision components, such as gears and bearings, and is available in rods (Ø6–150 mm) and plates (6–200 mm thickness).

Monomer Casting Nylon (MC Nylon) Applications

MC Nylon is utilised in gears, racks and transmission systems for industrial machinery. Its tensile strength of 75–85 MPa and wear resistance meet the operational requirements. It is employed as bearings and bushings in chemical equipment given its resistance to mild acids and solvents. Automotive components, such as pulleys and thrust washers, operate within a temperature range of –40°C to 115°C and benefit from the material’s low friction. In electrical applications, its dielectric strength of ≥25 kV/mm and volume resistivity of 10¹⁵ Ω·cm are advantageous. Food processing components comply with FDA standards, and structural elements in conveyors are produced in accordance with performance specifications.

Monomer Casting Nylon (MC Nylon) Packaging

Our products are packaged in customised cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. Appropriate cushioning materials are incorporated to ensure protection during transportation.

Packaging: Carton, Wooden Box, or Customized.

Please review the packaging details provided for your reference.

Manufacturing Process

1.       Testing Method

(1)    Chemical Composition Analysis – Techniques such as GDMS or XRF are employed to verify compliance with purity requirements.

(2)    Mechanical Properties Testing – Tensile strength, yield strength and elongation are measured to assess material performance.

(3)    Dimensional Inspection – Thickness, width and length are measured to verify adherence to specified tolerances.

(4)    Surface Quality Inspection – Defects such as scratches, cracks or inclusions are identified through visual and ultrasonic examination.

(5)    Hardness Testing – Hardness is determined to confirm uniformity and mechanical reliability.

Please refer to the testing procedures provided by SAM for further details.

Monomer Casting Nylon (MC Nylon) FAQs

Q1. What temperature limits apply for continuous vs. intermittent use?

Continuous operation is rated from –40°C to 115°C; intermittent operation is rated from –100°C to 180°C. Exceeding 115°C continuously reduces material performance by more than 30%.

Q2. How does MC Nylon compare to standard nylon electrically?

MC Nylon exhibits a dielectric strength of ≥25 kV/mm, which is approximately 15% higher than standard nylon (approximately 20 kV/mm). Its dielectric constant is 3.7.

Q3. Is MC Nylon suitable for acidic environments?

MC Nylon resists weak acids, for example 10% acetic acid, but it degrades in strong oxidisers (e.g. >30% HNO₃). It is advisable to verify chemical compatibility for specific concentrations.

Related Information

1.       Common Preparation Methods

Monomer Preparation: Caprolactam is melted and purified under vacuum.

Catalysis: Alkaline catalysts (e.g. NaOH) are employed to initiate anionic polymerisation.

Casting: The activated monomer is poured into preheated moulds (150–180°C).

In-Mould Polymerisation: Polymerisation occurs within 15–30 minutes, resulting in a density of 1.15 g/cm³ for the produced rods and plates.

Annealing: Products are subjected to heat treatment at 100–120°C to increase crystallinity and reduce residual stress.

Machining: Final dimensions are achieved by precision cutting or grinding.
