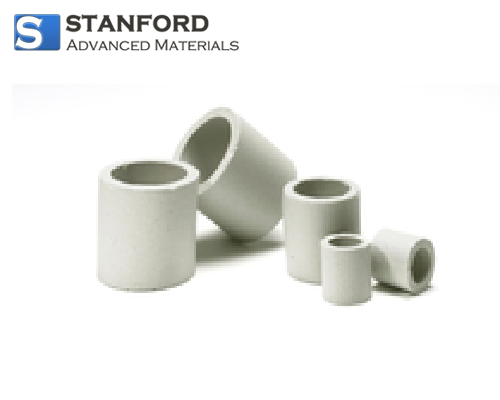

RP2322 Porcelain Raschig Rings

Catalogue Number	RP2322
Dimensions	1"-6"
Material	Ceramic
Color	White

SAM has over 20 years of experience in ceramic filling body manufacturing. Tests have indicated an effective surface area of 500 m²/m³. Flow resistance was reduced by 30% relative to standard benchmarks, thereby improving mass and heat transfer performance in Porzellan‐Raschig rings.

INQUIRY

Description

Specification

LAST RECOMMENDATION

RP2317 Porcelain Berlin Saddles

RP2318 Porcelain Saddles

RP2319 Porcelain Cascade Mini-Rings

The product is designated RP2320. Manufacturers produce rings using porcelain. Engineers design the rings and a cross subdivision is incorporated. The product specification remains as provided.

RP2321 Porcelain Bath Towel Rings

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Size (inches/mm)		*DHδ (mm)*	Specific Surface (^m2/m3)	Void Volume (^m3/m3)	Packing Number (^n/m3)	Packing Density (^kg/m3)	Dry Packing (factor-1)
	Φ10	10102	440	0.70	720 000	700	1 280
	Φ15	15152	330	0.70	250 000	690	960
1"	Φ25	25253.5	190	0.78	50 000	680	400
	Φ35	35354.5	150	0.76	18 500	650	320
1.5"	Φ40	40405	126	0.75	13 200	630	305
2"	Φ50	50505.5	93	0.81	6 400	600	177
3"	Φ80	80809.5	90	0.68	1 950	500	234
4"	Φ100	10010010	70	0.70	1 000	700	172
6"	Φ150	15015015	50	0.68	295	790	142

SiO2	Al2O3	Fe2O3	K2O+Na2O	CaO
>70%	17-23%	<1%	2-4%	<1-2%

Size ( inch/ mm )		DHδ mm	Specific surface (m²/m³)	Void volume (m³/m³)	Bulk number (n/m³)	Bulk density (kg/m³)	Dry packing (factorm-1)
	Φ10	10102	440	0.70	720000	700	1280
	Φ15	15152	330	0.70	250000	690	960
1"	Φ25	25253.5	190	0.78	50000	680	400
	Φ35	35354.5	150	0.76	18500	650	320
1.5"	Φ40	40405	126	0.75	13200	630	305
2"	Φ50	50505.5	93	0.81	6400	600	177
3"	Φ80	80809.5	90	0.68	1950	500	234
4"	Φ100	10010010	70	0.70	1000	700	172
6"	Φ150	15015015	50	0.68	295	790	142
