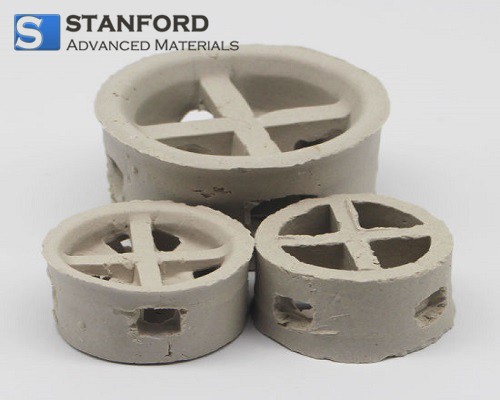

RP2319 Porcelain Cascade Mini-Rings

Catalogue Number	RP2319
Dimensions	1"-3"
Material	Ceramic
Color	White

SAM has over 20 years of experience in ceramic packing bodies based on laboratory measurements. Laboratory tests show that the design achieves an effective surface area 30% above standard values and airflow resistance 25% below benchmarks, thereby optimising mass and heat transfer in porcelain cascade mini‐rings.

INQUIRY

Description

Specification

LAST RECOMMENDATION

RP2317 Porcelain Berlin Saddles

RP2318 Porcelain Saddles

The product is designated RP2320. Manufacturers produce rings using porcelain. Engineers design the rings and a cross subdivision is incorporated. The product specification remains as provided.

RP2321 Porcelain Bath Towel Rings

RP2322 Porcelain Raschig Rings

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Size	ODHT (mm)	Weight (kg/m³)	Quantity pcs. / m³	Surface Area (m²/m³)	Free Volume (%)
1" (25mm)	25203	624	74 000	250	75
2" (50mm)	50305	600	8 980	150	78
3" (76mm)	76458	580	2 800	108	86

SiO2	Al2O3	Fe2O3	K2O+Na2O	CaO
>70%	17-23%	<1%	2-4%	<1-2%

Size	ODHT (mm)	Weight kg/m3	Number pc. / m3	Surface m2 / m3	Free Volume (%)
1” (25mm)	25203	624	74000	250	75
2”(50mm)	50305	600	8980	150	78
3”(76mm)	76458	580	2800	108	86

RP2319 Porcelain Cascade Mini-Rings

Porcelain Cascade Mini-Rings Description

Porcelain Cascade Mini-Rings Specifications

Porcelain Cascade Mini-Rings Applications
