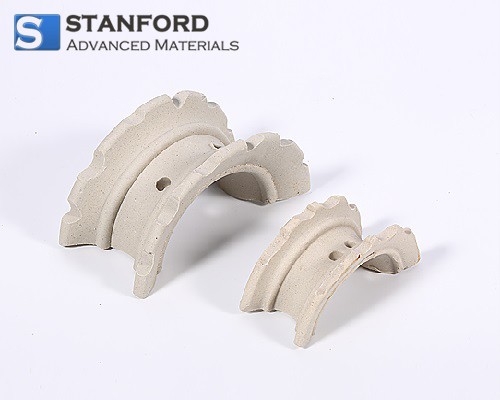

RP2318 Porcelain Saddles

Catalogue Number	RP2318
Dimensions	1"-3"
Material	Ceramic
Color	White

Porcelain Super Saddles serve separation, purification and filtration processes. Industries employ these saddles in water treatment, petrochemistry, environmental protection and pharmaceuticals. Additional sectors include food and beverage manufacturing, chemicals, air purification, wastewater treatment, biotechnology and the oil and gas sector. SAM, with over 25 years of expertise in ceramic packings, delivers an effective surface area nearly 80% higher than conventional packings. This factor reduces flow resistance by approximately 30%, thereby enhancing mass and heat transfer.

INQUIRY

Description

Specification

LAST RECOMMENDATION

RP2317 Porcelain Berlin Saddles

RP2319 Porcelain Cascade Mini-Rings

The product is designated RP2320. Manufacturers produce rings using porcelain. Engineers design the rings and a cross subdivision is incorporated. The product specification remains as provided.

RP2321 Porcelain Bath Towel Rings

RP2322 Porcelain Raschig Rings

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Standard Size		Approx. Weight		Surface Area		Void Fraction (%)	Dry Packing Factor (^m-1)
Standard Size		^lb/ft3	^Kg/m3	^ft2/ft3	^m2/m3	Void Fraction (%)	Dry Packing Factor (^m-1)
1"	25mm	40	645	79.5	260	77	570
1.5"	38 mm	37.5	600	64	210	78	430
2"	50mm	35.6	570	42.8	140	79	277
3"	76mm	36	580	32	105	77	206

Composition	Value	Composition	Value
_SiO2	>69%	CaO	<0.25%
_Al2O3	15-23%	MgO	<0.2%
_SiO2+Al2O3	>92%	_K2O+Na2O	2-4%
_Fe2O3	<1%	Others	<1%

Index	Unit	Value
Porosity	Vol %	1
Specific Heat	KJ/Kg	840-900
Compression Strength	^N/mm2	390-420
Specific Gravity	^g/cm3	2.3-2.45
Acid Resistance	%	99.98
Firing Temperature	°C	1280 to 1320
Softening Point	°C	>1400
Density	^Kg/m3	2300-2400
Water Absorption	%	<0.2
Thermal Expansion	10^-6mm/mm°C	4.7
Hardness	Mohs Scale	7-8
Overall Strength	Newton	5600
Impact Strength	Kgf.^cm/cm2	1.0-1.5

Normal Size		Approx. Weight		Surface Area		Void Fraction (%)	Dry Packing factor (m^-1)
Normal Size		lb/ft³	Kg/m³	ft²/ft³	m²/m³	Void Fraction (%)	Dry Packing factor (m^-1)
1"	25mm	40	645	79.5	260	77	570
1.5"	38mm	37.5	600	64	210	78	430
2"	50mm	35.6	570	42.8	140	79	277
3"	76mm	36	580	32	105	77	206
