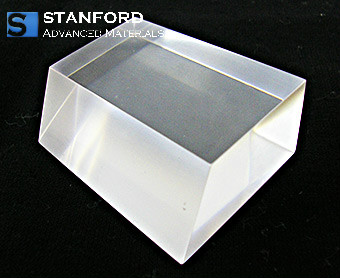

NaI (Tl) Scintillation Crystal Description:
NaI(Tl) scintillation crystal is widely recognised as a viable substitute for single-crystal scintillators in applications subject to thermal and mechanical shocks. NaI(Tl) scintillation crystal is a recently developed material that provides durability and exhibits a scintillation performance equal to that of single crystalline NaI(Tl). Current applications include aerospace research, oil drilling for geophysical surveys and radiation environmental monitoring.
-scintillation-crystal.jpg)
NaI(Tl) Scintillation Crystal Advantages:
- High light yield
- No significant self-absorption of scintillation light
- Emission spectrum aligned with the sensitivity curve of photomultiplier tubes (PMTs) with bialkali photocathodes
- Available in both single crystalline and polycrystalline forms
NaI (Tl) Scintillation Crystal Specifications:
Density (g/cm³)
|
3.67
|
Melting Point (K)
|
924
|
Thermal Expansion Coefficient (°C⁻¹)
|
47.7 x 10-6
|
Cleavage Plane
|
<100>
|
Hardness (Mohs)
|
2
|
Hygroscopic
|
Yes
|
Maximum Emission Wavelength (nm)
|
415
|
Refractive Index at Emission Maximum
|
1.85
|
Primary Decay Time (ns)
|
250
|
Light Yield (Photons/keVγ)
|
38
|
Temperature Coefficient of Light Yield
|
0.3% °C⁻¹
|
NaI (Tl) Scintillation Crystal Applications:
- Environmental monitoring
- Oil and gas exploration – borehole logging
- Nuclear physics
- Industry – thickness or density measurement, coal/mineral analysis
