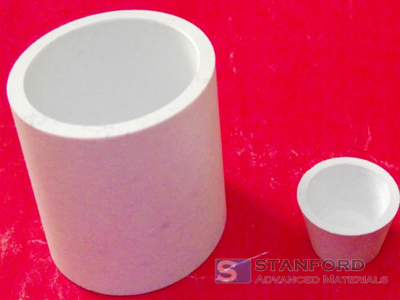

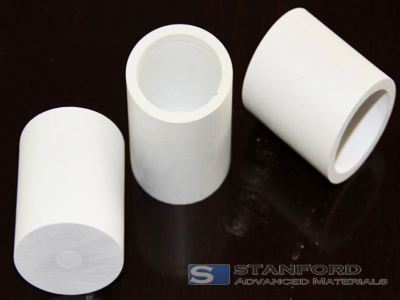

HBN1659 Hot-Pressed Boron Nitride (H-BN) Crucibles

Name: HBN1659 Hot-Pressed Boron Nitride (H-BN) Crucibles
SKU: HBN1659
Availability: InStock
Rating: 4.9 (166 reviews)

Catalogue Number	HBN1659
Material	Hot Pressed Boron Nitride
Dimensions	Customized
Shape	Crucible
MSDS / SDS	Download MSDS / SDS

Stanford Advanced Materials (SAM) is a leading UK supplier of high-performance Hot-Pressed Boron Nitride Crucibles. Engineered for extreme environments, our H-BN crucibles offer unmatched thermal shock resistance, excellent electrical insulation, and non-wetting properties for molten metals – making them ideal for R&D and industrial processes across the UK.

INQUIRY

Description

Specification

SDS

Video

Reviews

FAQ

Can you supply crucibles to a specific drawing?

Yes, custom machining from BN blanks is our specialty. Send us your CAD drawing or detailed sketch for a prompt quote.

What is the lead time for custom crucibles to the UK?

Typically 4-8 weeks for custom designs, depending on complexity. Standard items may ship sooner.

Is Hot-Pressed BN suitable for use with molten aluminium or reactive metals?

Yes, its non-wetting property and chemical inertness make it excellent for Al, Mg, and many alloys.

LAST RECOMMENDATION

HBN0921 Hot-pressed boron nitride ring (BN-Ring)

Pyrolytic Boron Nitride Crucible, PBN Crucibles

PBN0922 Crucible for Pyrolytic Boron Nitride, PBN Crucible

https://www.samaterials.com/images/sc/1765962118-normal-PBN0923.jpg

PBN0923 Pipes produced from pyrolytic boron nitride (PBN)

BN0948 Pyrolytic Boron Nitride Plates, PBN Discs

BN0948 Pyrolytic Boron Nitride (PBN) Disc, PBN Disc

PBN0953 Pyrolytic Boron Nitride Pyrolytic Graphite PBN/PG Composite Heating Elements

PBN0955 Polybutylene Naphthalate (PBN) Machined Products

PBN1343 Pyrolytic Boron Nitride Sheet (PBN Sheet)

PBN1344 Pyrolytic Boron Nitride Strip (PBN Strip)

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

I would like to join the mailing list to receive updates from Stanford Advanced Materials.

Please enclose drawings:

Save files here or

* Check Code

Accepted file types: PDF, png, jpg, jpeg. Upload multiple files at once; each file must be under 2MB.

Property	Typical Value (Grade BN99/AX05)	Note
Primary Composition	>99.5% h-BN	High purity
Density	~1.9 g/cm³	Lightweight
Max. Use Temperature (Inert/Vacuum)	1800°C	Short term
Max. Use Temperature (Air)	~900°C	Oxidation limit
Thermal Conductivity	25-30 W/m·K (in-plane)	Moderate, promotes even heating
Electrical Resistivity	>10¹⁴ Ω·cm	Excellent insulator
Compressive Strength	~25 MPa	Handle with care compared to oxides

Grade	BN99 (Grade AX05)	BN-BO (Grade A)	BNCB (Grade HP)	BNSIO (M&M26)	ZSBN
Composition	hBN > 99.5%	hBN > 98%	hBN > 90%	hBN 40%, SiO2 60% (M) hBN 60%, SiO2 40% (M26)	hBN > 45% ZrO2 < 45% Borosilicate < 10%
Binder Type	Self-Bonded	B2O3	Calcium Borate	SiO2	Borosilicate glass
Colour	white	white	white	white	grey
Density g/cm³	1.9	2.0	2.0	2.1-2.3	2.9
Compressive Strength MPa, 25℃	25	143-186	96	289-316	219-254
Hardness (Knoop) Kg/mm²	4	20	16	-	100
Shape	Rod Plate/Sheet Tube Crucible Custom part	Rod Custom part	Custom part	Custom part	Nozzle Custom part

Crucible Type	Material	Max Temp (°C)	Thermal Conductivity	Thermal Shock Resistance	Chemical Resistance	Applications
Quartz Ceramic	Quartz Ceramic	1100	Low	High	High	General laboratory
BeO Ceramic	Beryllium Oxide	1800	Very High	High	High	High-temperature, electronics
PG Coated C	PG coated Graphite	2000	High (anisotropic)	Very High	High	Crystal growth, evaporation
PG Coated PBN	PG coated PBN	1800	High	Very High	Very High	High-purity crystal growth
PBN Crucible	Pyrolytic BN	1800	High	Very High	Very High	MBE, OLED, VGF, LEC processes
AlN Crucible	Aluminium Nitride	1800	High	High	High	Semiconductor, packaging
SiC Crucible	Silicon Carbide	1600	High	Very High	High	Metal melting, foundry
H-BN Crucible	Hot Pressed BN	1800	Moderate	Very High	High	Metal processing, soldering
Al Titanate	Aluminium Titanate	1400	Low	Excellent	Moderate	Thermal cycling, glass industry
Alumina Crucible	Aluminium Oxide	1700	Moderate	Moderate	High	General high-temperature
Quartz for Si	Fused Quartz	1200	Low	High	High	Silicon single crystal growth (Czochralski)

Grade	BN99 (Grade AX05)	BN-BO (Grade A)	BNCB (Grade HP)	BNSIO (M&M26)	BN-AlN	ZSBN
Composition	hBN > 99.5%	hBN > 98%	hBN > 90% Calcium Borate	hBN 40%, SiO2 60% (M) hBN 60%, SiO2 40% (M26)	BN+AlN AlBO3	hBN > 45% ZrO2 < 45% Borosilicate < 10%
Color	white	white	white	white	white	gray
Density (g/cm³)	1.9	2.1	2.0	2.1-2.3	2.5-2.6	2.9
Features	Excellent corrosion resistance High thermal conductivity Thermal shock resistance		Excellent moisture resistance Low thermal expansion Spallation resistance	Thermal shock resistance High thermal conductivity Moisture resistance	High thermal conductivity High-temperature resistance Easy machining	Good wear resistance Chemical stability High thermal shock stability
Shape	Rod Plate/Sheet Tube Crucible Custom part	Rod Custom part	Custom part	Custom part	Custom part	Nozzle Custom part

HBN1659 Hot-Pressed Boron Nitride (H-BN) Crucibles

Why Choose a Hot-Pressed BN Crucible?

Technical Specifications at a Glance

Comparison with Other Grades

Common Applications in Industry & Research

H-BN vs. Other Crucible Materials

Reliable UK Supply Chain & Packaging
