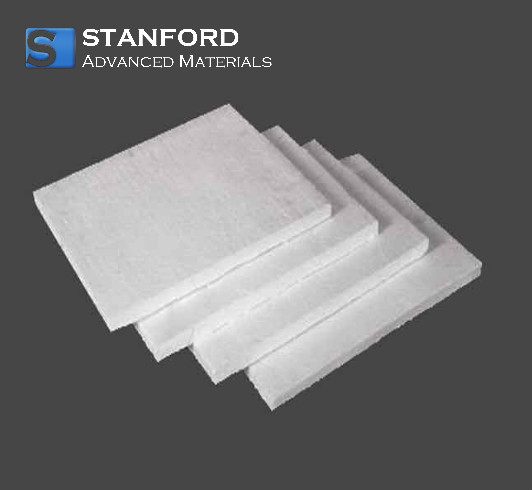

CF2513 Aluminium Silicate Ceramic Refractory Fibre Baffle

Catalogue Number	CF2513
Bulk Density	280-500 kg/m3 g/cm3
Operating Temperature	950-1360 °C

Aluminium silicate ceramic fibre boards are used in industry because they exhibit defined chemical and physical properties. SAM has over 20 years’ experience in selling refractory aluminium silicate fibre boards.

INQUIRY

Description

Specification

Reviews

LAST RECOMMENDATION

YSZ1870 Yttrium oxide-stabilised zirconium dioxide nanopowder (YTZP/YSZ nanopowder)

SC0892 High-Purity Silicon Carbide Powder (SiC powder) (CAS No. 409-21-2)

SC0893 Silicon Carbide Bearing (SiC Bearing)

SC0894 Silicon Carbide Sealing Ring (SiC-Ring)

SC0895 Silicon Carbide Spheres (SiC Spheres)

SC0896 Silicon carbide plate (SiC plate)

SC0897 Silicon Carbide Nozzle (SiC Nozzle)

SC0908 Silicon Carbide Tube, SiC Tube

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

I would like to join the mailing list to receive updates from Stanford Advanced Materials.

Please enclose drawings:

Save files here or

* Check Code

Accepted file types: PDF, png, jpg, jpeg. Upload multiple files at once; each file must be under 2MB.

Physical Properties		Normal	Standard	High Purity	High Alumina	Zirconium
		Model STD	Model H	Model HP	Model HA	Type ZA
		SAMASC-301	SAMASC-302	SAMASC-303	SAMASC-304	SAMASC-305
Colour Classification		white	white	white	white	white
Classification Temperature °C		1 000	1 100	1 200	1 260	1 400
Working Temperature °C		<950	1 000	1 100	1 200	1 360
Bulk Density kg/m³		280-500	280-500	280-500	280-500	280-500
Permanent Linear Shrinkage %		-4	-3	-3	-3	-3
(24 h, 350 kg/m³)		1 000°C	1 000°C	1 100°C	1 260°C	1 360°C
Thermal Conductivity at different temperature levels W/m·K	400°C	0.085	0.085	0.085	0.085	0.085
(285 kg/m³)	800°C	0.132	0.132	0.132	0.132	0.132
	1 000°C	0.18	0.18	0.18	0.18	0.18
Tensile Strength MPa		0.5	0.5	0.5	0.5	0.5
(Thickness Direction Compression 10%)		0.5	0.5	0.5	0.5	0.5
Chemical Composition	Al₂O₃	44	46	47-49	52-55	32-33
%	Al₂O₃+SiO₂	96	97	99	99	-
	ZrO₂	-	-	-	-	15-17
	Fe₂O₃	<1.2	<1.0	0.2	0.2	0.2
	Na₂O+K₂O	≤0.5	≤0.5	0.2	0.2	0.2

physical property		Ordinary	Standard	High purity	High alumina	Zirconium
		model STD	modelH	modelHP	ModelHA	typeZA
		SAMASC-301	SAMASC-302	SAMASC-303	SAMASC-304	SAMASC-305
Color classification		white	white	white	white	white
Classification temperature°C		1000	1100	1200	1260	1400
working temperature°C		<950	1000	1100	1200	1360
bulk density kg/m³		280-500	280-500	280-500	280-500	280-500
Permanent Line Shrinkage%		-4	-3	-3	-3	-3
(24hr,350 kg/m³)		1000°C	1000°C	1100°C	1260°C	1360°C
Thermal Conductivity at Different Temperature Planes W/m.k	400°C	0.085	0.085	0.085	0.085	0.085
(285 kg/m³)	800°C	0.132	0.132	0.132	0.132	0.132
	1000°C	0.18	0.18	0.18	0.18	0.18
tensile strength MPa		0.5	0.5	0.5	0.5	0.5
(Thickness Directional Compression 10%)		0.5	0.5	0.5	0.5	0.5
chemical composition	Al₂O₃	44	46	47-49	52-55	32-33
%	Al₂O₃+SiO₂	96	97	99	99	-
	ZrO₂	-	-	-	-	15-17
	Fe₂O₃	<1.2	<1.0	0.2	0.2	0.2
	Na₂O+K₂O	≤0.5	≤0.5	0.2	0.2	0.2

CF2513 Aluminium Silicate Ceramic Refractory Fibre Baffle

Aluminium Silicate Ceramic Fireproof Fibre Baffle Description

Aluminium Silicate Ceramic Fireproof Fibre Baffle Specifications

Aluminium Silicate Ceramic Fireproof Fibre Baffle Applications

Aluminium Silicate Ceramic Fireproof Fibre Baffle Packaging
