MWDC E22A Powder Descriptions:
MWDC E22A Powder is one of our products from the series of dielectric microwave ceramic powders. Microwave dielectric (MWDC) is a type of ceramic material that is used as a dielectric component in circuits operating in the microwave frequency band (primarily in the UHF and SHF bands, from 300 MHz to 300 GHz with wavelengths between 0.1 mm and 1 m). It performs one or more specified functions.
This material is suitable for the production of a range of microwave devices, for example frequency stabilised oscillators, filters and discriminators in electronic countermeasures, navigation, communication, radar systems, direct-to-home satellite TV receivers and mobile telephones, thereby meeting the requirements for miniaturisation, integration, high reliability and low cost in microwave circuits.
Specifications for the MWDC E22A Powder:
Microwave Properties
|
Resonance Frequency (GHz)
|
7.5
|
Dielectric Constant
|
22.0
|
Quality Factor (GHz)
|
>75,000
|
Temperature Coefficient τf (ppm/℃) (-20 ~ 20℃)
|
4.3
|
Temperature Coefficient τf (ppm/℃) (20 ~ 80℃)
|
-5.4
|
Temperature Coefficient τf (ppm/℃) (-20 ~ 80℃)
|
-7.9
|
Sintering Temperature Range
|
1340-1360℃
|

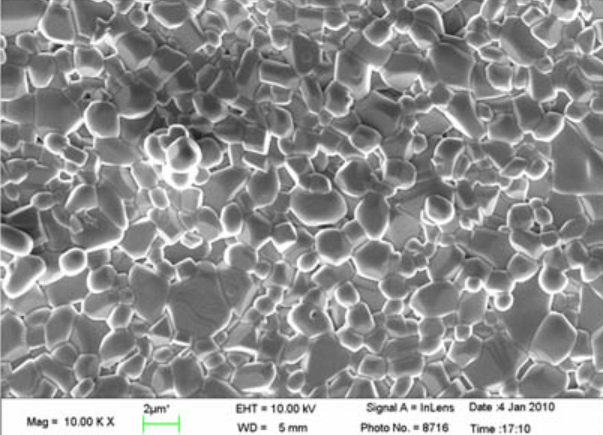

MWDC E22A Powder Microstructure:

MWDC E22A Powder Applications:
-Dielectric Resonator/Filter
-Antenna
-Substrate for MIC
-Cellulose and Paper
-Single-layer Capacitor for HF, etc.
