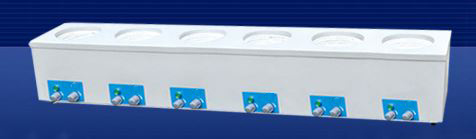

LAB1044 (Discontinued) Multi-row Magnetic Stirrer Heating Mantle

Catalogue Number	LAB1044
Operating Temperature	≤ Surface:842 F / Liquid:572 F
Capacity	Customized

(Expired)

Stanford Advanced Materials supplies heating jackets intended for experimental use. The range includes a multi‐row magnetic stirring heating jacket, a digital and magnetic stirring heating jacket, and an electronically controlled heating jacket. A heating jacket with digital display is also available.

INQUIRY

Description

Specification

LAST RECOMMENDATION

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Catalogue No.	Capacity	Voltage	Max. Temperature	Power (W)	External Dimensions (mm)	Packaging Dimensions (mm)
STHM-V-B-1	Two-row, 100 ml	110V	Surface:842 F Liquid:572 F	100×2	280×140×106	320×180×190
STHM-V-B-2	Two-row, 250 ml			150×2	320×160×170	360×190×200
STHM-V-B-3	Two-row, 500 ml			250×2	360×180×180	400×220×210
STHM-V-B-4	Two-row, 1 000 ml			350×2	420×210×200	460×250×230
STHM-V-B-5	Four-row, 100 ml			100×4	530×140×160	570×180×190
STHM-V-B-6	Four-row, 250 ml			150×4	610×160×170	650×190×200
STHM-V-B-7	Four-row, 500 ml			250×4	690×180×180	730×220×210
STHM-V-B-8	Four-row, 1 000 ml			350×4	810×210×200	850×250×230
STHM-V-B-9	Six-row, 100 ml			100×6	820×140×160	860×180×190
STHM-V-B-10	Six-row, 250 ml			150×6	940×160×170	980×190×200
STHM-V-B-11	Six-row, 500 ml			250×6	1 060×180×180	1 100×220×210
STHM-V-B-12	Six-row, 1 000 ml			350×6	1 240×210×200	1 280×250×230

Catalog No.	Capacity	Voltage	Max .Temperature	Power(W)	Exterior Size(mm)	Packing Size(mm)
STHM-V-B-1	Two Rows 100ml	110V	Surface:842 F Liquid:572 F	100×2	280×140×106	320×180×190
STHM-V-B-2	Two Rows 250ml			150×2	320×160×170	360×190×200
STHM-V-B-3	Two Rows 500ml			250×2	360×180×180	400×220×210
STHM-V-B-4	Two Rows 1000ml			350×2	420×210×200	460×250×230
STHM-V-B-5	Four Rows 100ml			100×4	530×140×160	570×180×190
STHM-V-B-6	Four Rows 250ml			150×4	610×160×170	650×190×200
STHM-V-B-7	Four Rows 500ml			250×4	690×180×180	730×220×210
STHM-V-B-8	Four Rows 1000ml			350×4	810×210×200	850×250×230
STHM-V-B-9	Six Rows 100ml			100×6	820×140×160	860×180×190
STHM-V-B-10	Six Rows 250ml			150×6	940×160×170	980×190×200
STHM-V-B-11	Six Rows 500ml			250×6	1060×180×180	1100×220×210
STHM-V-B-12	Six Rows 1000ml			350×6	1240×210×200	1280×250×230
