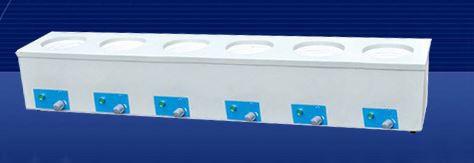

LAB1045 (Discontinued) Multi-row Heating Mantle with Electronic Control

Catalogue Number	LAB1045
Operating Temperature	≤ Surface:842 F / Liquid:572 F
Capacity	Customized

(Expired)

Supplier of Laboratory Equipment - SAM
SAM supplies heating mantles of various models. These include multi-row electronically controlled heating mantles, digital and magnetic stirring heating mantles, electronically controlled heating mantles, and mantles with digital displays.

INQUIRY

Description

Specification

LAST RECOMMENDATION

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Catalogue No.	Configuration	Voltage	Maximum Temperature	Power (W)	External Dimensions (mm)	Packing Dimensions (mm)
STHM-IV-B-1	Dual-row 100ml	110V	Surface:842°F Liquid:572°F	100×2	280×140×106	320×180×190
STHM-IV-B-2	Dual-row 250ml			150×2	320×160×170	360×190×200
STHM-IV-B-3	Dual-row 500ml			250×2	360×180×180	400×220×210
STHM-IV-B-4	Dual-row 1000ml			350×2	420×210×200	460×250×230
STHM-IV-B-5	Four-row 100ml			100×4	530×140×160	570×180×190
STHM-IV-B-6	Four-row 250ml			150×4	610×160×170	650×190×200
STHM-IV-B-7	Four-row 500ml			250×4	690×180×180	730×220×210
STHM-IV-B-8	Four-row 1000ml			350×4	810×210×200	850×250×230
STHM-IV-B-9	Six-row 100ml			100×6	820×140×160	860×180×190
STHM-IV-B-10	Six-row 250ml			150×6	940×160×170	980×190×200
STHM-IV-B-11	Six-row 500ml			250×6	1 060×180×180	1 100×220×210
STHM-IV-B-12	Six-row 1000ml			350×6	1 240×210×200	1 280×250×230

Catalog No.	Capacity	Voltage	Max. Temperature	Power(W)	Exterior Size(mm)	Packing Size(mm)
STHM-IV-B-1	Two Rows 100ml	110V	Surface:842 F Liquid:572 F	100×2	280×140×106	320×180×190
STHM-IV-B-2	Two Rows 250ml			150×2	320×160×170	360×190×200
STHM-IV-B-3	Two Rows 500ml			250×2	360×180×180	400×220×210
STHM-IV-B-4	Two Rows 1000ml			350×2	420×210×200	460×250×230
STHM-IV-B-5	Four Rows 100ml			100×4	530×140×160	570×180×190
STHM-IV-B-6	Four Rows 250ml			150×4	610×160×170	650×190×200
STHM-IV-B-7	Four Rows 500ml			250×4	690×180×180	730×220×210
STHM-IV-B-8	Four Rows 1000ml			350×4	810×210×200	850×250×230
STHM-IV-B-9	Six Rows 100ml			100×6	820×140×160	860×180×190
STHM-IV-B-10	Six Rows 250ml			150×6	940×160×170	980×190×200
STHM-IV-B-11	Six Rows 500ml			250×6	1060×180×180	1100×220×210
STHM-IV-B-12	Six Rows 1000ml			350×6	1240×210×200	1280×250×230
