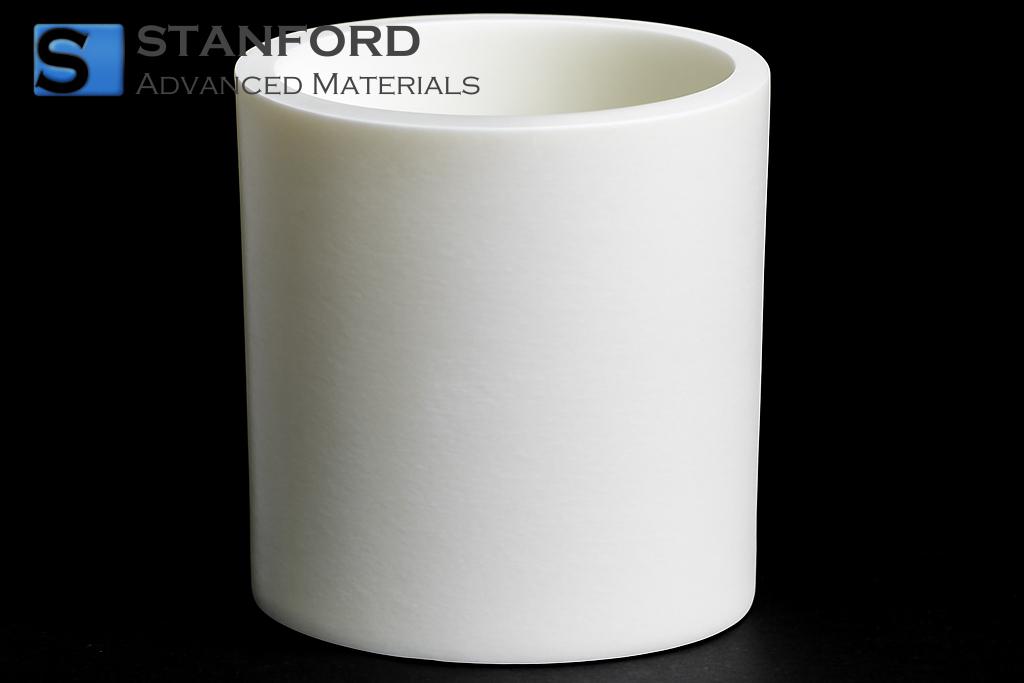

AC9815 Alumina Crucible, Al2O3 Crucible Cylindrical, 95%, 15 mL

Alumina Crucible, Al2O3 Crucible Cylindrical, 95%, 15 mL Description

Alumina Crucible, Al2O3 Crucible Cylindrical, 95%, 15 mL consists of high-purity alumina (Al2O3) with a 15 mL volume. The material exhibits a density between 3.7-3.9 g/cm³, accompanied by tensile and compressive strengths of approximately ~32 Kpsi and ~300 Kpsi, respectively. The thermal conductivity of 25 W/(m·K) and an operating limit of ≤1500 ℃ enable it to withstand elevated temperatures. A high volume resistivity (>10^14 Ohm·cm) aids in minimising electrical leakage during processing.

Alumina Crucible, Al2O3 Crucible Cylindrical, 95%, 15 mL Applications

Industrial Processing
- Used as a refractory container in furnace operations to achieve controlled heating by leveraging its high operating temperature and stable thermal conductivity.
- Applied as a liner in metal casting systems to mitigate contamination issues by taking advantage of its chemically inert alumina composition.

Laboratory Research
- Employed as a reaction vessel in pyrometallurgical experiments to maintain uniform temperature distribution through its balanced mechanical properties.
- Serves as a sample holder in high-temperature material synthesis to ensure minimal electrical interference due to its elevated volume resistivity.

Product Comparison

Alumina Crucible, Al2O3 Crucible Cylindrical, 95%, 15 mL Packing

The crucible is packaged in a shock-absorbent container with anti-static wrapping and foam padding to protect against mechanical stress. A moisture-barrier film limits environmental exposure, while clear labelling ensures correct handling. The product is stored in a cool, dry environment to prevent thermal shock, and custom packaging solutions, including individual encapsulation, are available upon request.

Frequently Asked Questions

Q1: How does the specified thermal conductivity impact process efficiency?
A1: The set thermal conductivity of 25 W/(m·K) assists in distributing heat uniformly, minimising hotspots during high-temperature processing and ensuring consistent material performance.

Q2: What measures are taken to verify the material’s microstructural integrity?
A2: Each crucible undergoes thermal cycle testing and surface inspection using optical microscopy, ensuring that the microstructure remains consistent and within defined tolerances for critical processes.

Q3: Can the crucible accommodate variations in process temperature?
A3: Yes, the operating temperature threshold of ≤1500 ℃ allows the crucible to be used in a range of high-temperature applications, while its high compressive strength supports demanding thermal cycles.

Additional Information

Alumina ceramics are central to high-temperature applications due to their chemical inertness and strong mechanical properties. Fabrication techniques focus on maintaining a precise alumina composition, which is critical for applications sensitive to thermal shock and electrical interference. Understanding the rigorous production and testing processes illuminates the material’s performance consistency.

The utilisation of alumina extends into various industrial and research environments where thermal stability and controlled mechanical properties are required. Detailed characterisation methods, such as optical microscopy and thermal analysis, ensure that the material meets stringent operational standards in advanced processing systems.
