AC9825 Alumina Crucible, Al2O3 Crucible Cylindrical, 95%, 2250 mL

Alumina Crucible, Al2O3 Crucible Cylindrical, 95%, 2250 mL Description

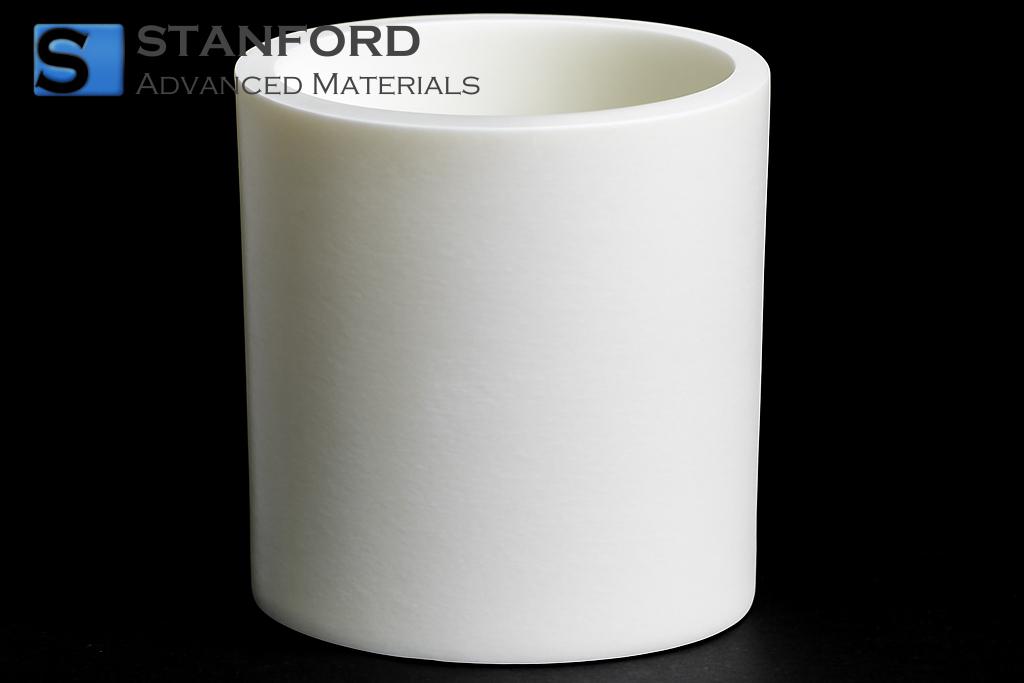

Alumina Crucible, Al2O3 Crucible Cylindrical, 95%, 2250 mL features a cylindrical design manufactured from high-purity aluminium oxide (Al₂O₃). Its 2250 mL capacity is suited for processes requiring controlled heat exposure. With a flexural strength of ≥300 MPa and compressive strength between ~1800–2200 MPa, the crucible offers stability during thermal cycling. The specified thermal conductivity and volume resistivity support effective heat distribution and electrical insulation during demanding processing environments.

Alumina Crucible, Al2O3 Crucible Cylindrical, 95%, 2250 mL Characteristics

*The above product information is based on theoretical data and is for reference only. Actual specifications may vary.

Alumina Crucible, Al2O3 Crucible Cylindrical, 95%, 2250 mL Applications

·         Industrial Processing
• Used as a reaction vessel in high-temperature systems to achieve controlled material synthesis by leveraging its stable thermal properties.
• Applied as a melting container in processes where chemical inertness prevents contamination and maintains process consistency.

·         Laboratory Research
• Serves as a crucible for sample synthesis in material studies to facilitate uniform heat distribution and minimise thermal shock by utilising its defined thermal conductivity.
• Frequently used for high-temperature experiments where mechanical stability is crucial for accurate test results.

Alumina Crucible, Al2O3 Crucible Cylindrical, 95%, 2250 mL Packing

The crucible is packaged in cushioned, anti-static foam-lined containers with sealed wrapping to protect against mechanical damage and contamination. It is stored under controlled humidity and temperature conditions to preserve its properties during transit and storage. Customised packaging options, including individual compartments and specific labelling, are available. These measures ensure integrity and maintain performance standards upon delivery.

Additional Information

Alumina ceramics are extensively employed in high-temperature applications due to their stability, chemical inertness, and controlled thermal properties. Their microstructure supports uniform heat distribution, which is critical in processes involving rapid temperature changes. Developments in sintering techniques and material characterisation continue to enhance alumina properties, meeting the evolving needs of scientific and industrial research.

In addition, thorough quality control measures such as X-ray diffraction and microstructural analysis ensure that the material's phase, density, and mechanical strengths align with theoretical values. This verification process aids in optimising process performance and prolonging component lifespan in demanding environments.
