AC9828 Alumina Crucible, Al2O3 Crucible Cylindrical, 99%, 25 ml

Alumina Crucible, Al2O3 Crucible Cylindrical, 99%, 25 mL Description

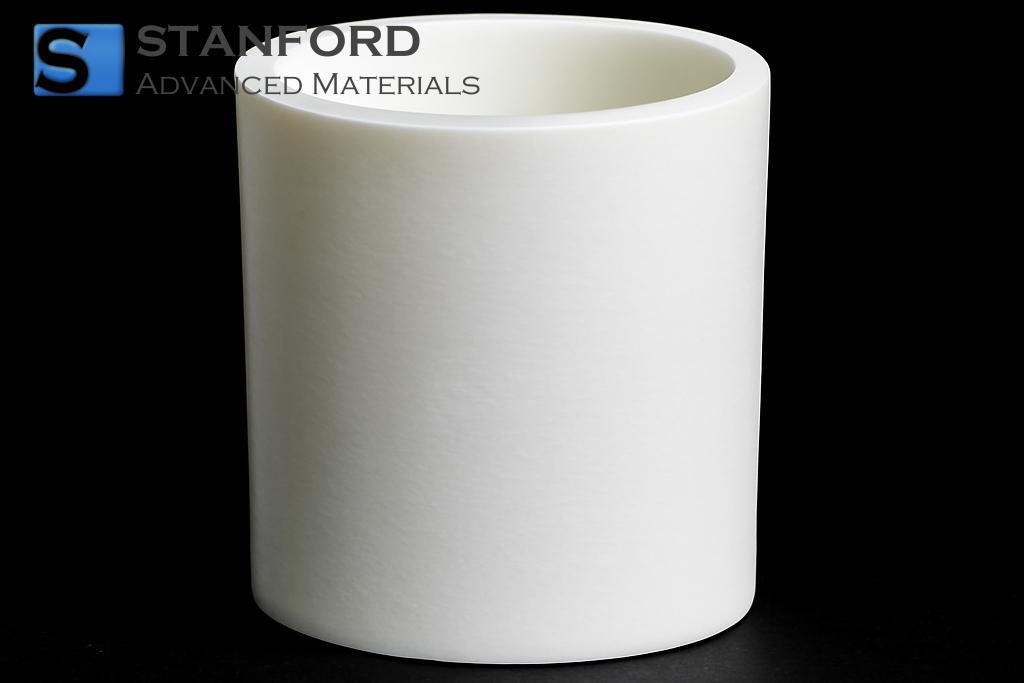

Alumina Crucible, Al2O3 Crucible Cylindrical, 99%, 25 mL is a ceramic container manufactured from high-purity aluminium oxide (Al2O3). The 25 mL capacity is suitable for controlled laboratory and industrial thermal experiments. With flexural strength of 300-450 MPa and compressive strength reaching ~1800–2200 MPa, this crucible offers reliable physical integrity and thermal stability. Its density range of 3.7-3.9 g/cm³ and thermal conductivity of 30 W/(m·K) support even heat distribution during processing.

Alumina Crucible, Al2O3 Crucible Cylindrical, 99%, 25 mL Characteristics

*The above product information is based on theoretical data and is for reference only. Actual specifications may vary.

Alumina Crucible, Al2O3 Crucible Cylindrical, 99%, 25 mL Applications

1.       Industrial Processing
   - Used as a containment vessel in high-temperature furnaces to achieve uniform heat treatment by leveraging its controlled density and thermal conductivity.
   - Serves as a reaction chamber in ceramic synthesis to manage precise temperature conditions and enhance material homogeneity.

2.       Laboratory Research
   - Applied as a small-scale reactor in chemical processing experiments to obtain consistent thermally driven reactions by utilising its strong mechanical properties.
   - Employed in material testing setups to evaluate thermal shock resistance and structural integrity under controlled heating cycles.

Alumina Crucible, Al2O3 Crucible Cylindrical, 99%, 25 mL Packing

The crucible is individually packaged in a sturdy plastic container with foam padding to mitigate mechanical shock. It is sealed within an anti-contamination bag to prevent debris ingress and moisture uptake. Storage in a dry, temperature-controlled environment is recommended to preserve material properties. Custom packaging options, including reinforced containers or specific labelling, are available to address unique transportation requirements.

Additional Information

Alumina ceramics are widely studied for their capabilities in high-temperature applications due to their excellent chemical inertness and stable microstructure. These characteristics make them suitable for various laboratory and industrial processes. The material's consistent performance under extreme conditions is verified through advanced characterisation techniques, ensuring that users receive a product with predictable and reproducible properties.

Understanding the behaviour of alumina under thermal stress can aid in process optimisation in fields such as materials synthesis and chemical engineering. The interplay between thermal conductivity, density, and mechanical strength is critical when designing systems for high-temperature operations.
