AC9841 Alumina Crucible, Al2O3 Crucible Square, 95%, 75 mL

Alumina Crucible, Al2O3 Crucible Square, 95%, 75 mL Description

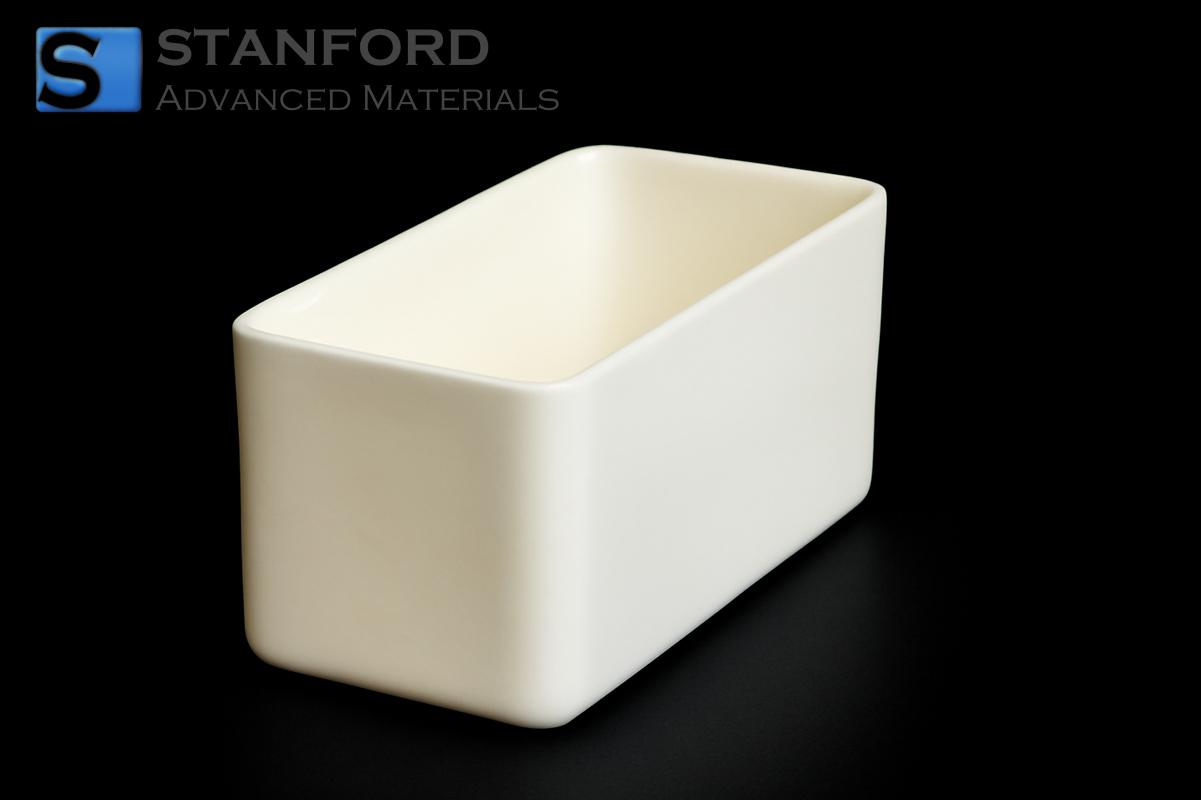

Alumina Crucible, Al2O3 Crucible Square, 95%, 75 mL is manufactured from high-purity Al2O3 and shaped into a square form with a 75 mL capacity. The crucible's dimensions ensure compatibility with standard laboratory and industrial thermal processing equipment. Its mechanical properties, including a flexural strength of ≥300 MPa and compressive strength of ~1800–2200 MPa, coupled with a thermal conductivity of 25 W/(m·K) and high electrical insulation, render it suitable for precise high-temperature operations.

Alumina Crucible, Al2O3 Crucible Square, 95%, 75 mL Characteristics

*The above product information is based on theoretical data and is for reference only. Actual specifications may vary.

Alumina Crucible, Al2O3 Crucible Square, 95%, 75 mL Applications

1.       Industrial Processing
   - Used as a refractory container in high-temperature furnace operations to achieve chemical inertness through its stable microstructure.

2.       Laboratory Applications
   - Applied as a crucible for sample preparation in analytical procedures to secure accurate thermal profiling and minimise contamination via its controlled sintering characteristics.

3.       Materials Research
   - Serves as a test vessel in ceramics research to facilitate uniform heat distribution and consistent mechanical performance during experimental processing.

Alumina Crucible, Al2O3 Crucible Square, 95%, 75 mL Packing

The crucible is securely packaged in an anti-static, cushioned container with a foam-lined interior to prevent mechanical damage and contamination. It is wrapped in moisture-barrier material for transport and storage. Suggested storage conditions include a dry, temperature-controlled environment. Options for custom labelling and packaging configurations are available upon request.

Additional Information

Alumina ceramics are highly valued in industrial and laboratory environments due to their inert chemical properties and ability to withstand thermal cycles. The controlled sintering process minimises defects and ensures a uniform microstructure, which is crucial for maintaining structural integrity.

Research in ceramic materials continually focuses on enhancing mechanical strength and thermal stability. These improvements support a wide range of applications—from high-temperature processing to advanced materials research—by providing consistent performance in environments subject to rigorous conditions.
