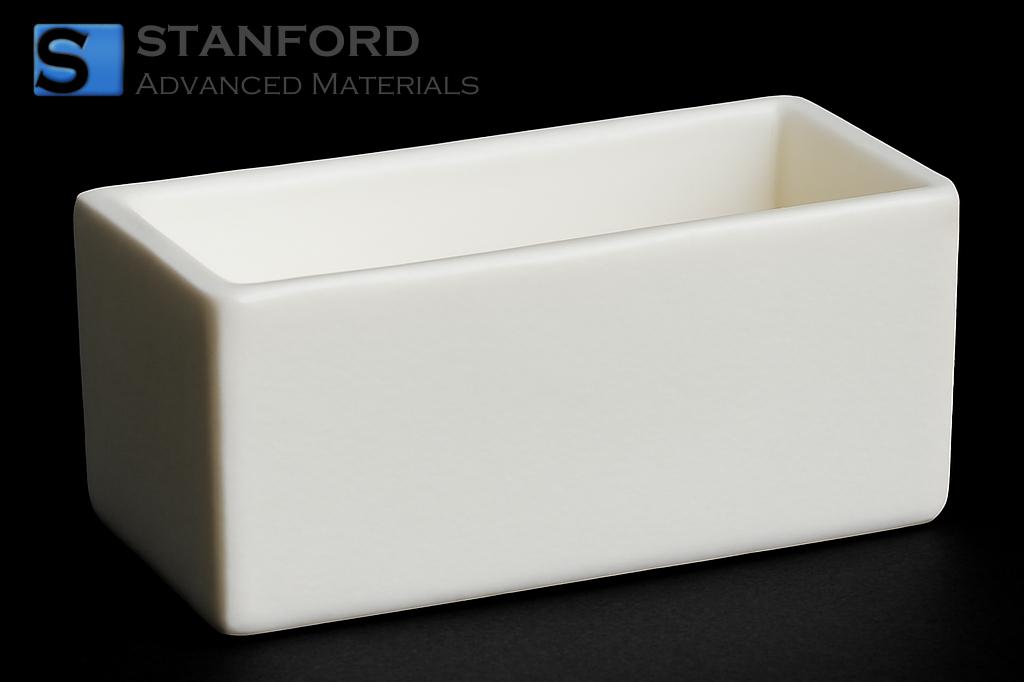

AC9844 Alumina Crucible, Al2O3 Crucible Square, 95%, 300 mL

Alumina Crucible, Al2O3 Crucible Square, 95%, 300 mL Description

Alumina (Al2O3) Crucible, Al2O3 Crucible Square, 95%, 300 mL is manufactured with a controlled 95% alumina composition. The 300 mL volume supports accurate process scaling in various high-temperature applications. A tensile strength of ~221 MPa helps maintain form under stress, while a compressive strength of ~2 068 MPa provides stability under load. With a thermal conductivity of 25 W/(m·K) and an operating temperature of ≤1 500 ℃, it is engineered to sustain high thermal gradients. A volume resistivity of >10^14 Ohm·cm ensures effective electrical insulation.

Alumina Crucible, Al2O3 Crucible Square, 95%, 300 mL Applications

Industrial Processing
- Used as a refractory vessel in high-temperature furnaces to reduce contamination by utilising its chemical inertness.

Metallurgical Applications
- Applied as a container in metal melting operations to facilitate even heat distribution by utilising its measured thermal conductivity.

Semiconductor Manufacturing
- Serves as a process vessel in semiconductor annealing systems to maintain consistent temperature profiles by utilising its stable mechanical properties.

Product Comparison

Alumina Crucible, Al2O3 Crucible Square, 95%, 300 mL Packing

Alumina Crucible, Al2O3 Crucible Square, 95%, 300 mL are individually packaged in cushioned cartons with moisture-proof liners and anti-vibration foam inserts. The container is sealed securely to prevent dust and chemical contamination during transit and storage. Recommended storage in a temperature-controlled, low-humidity environment further preserves its mechanical and thermal integrity. Custom packaging—including compartmentalised inserts and anti-static measures—is available upon request.

Frequently Asked Questions

Q1: How does the measured density influence the crucible's performance?
A1: The density range of 3.7-3.9 g/cm³ contributes to the crucible’s mechanical stability and thermal behaviour. This ensures that the crucible maintains its shape and performs predictably under high temperature and load conditions, which is critical during prolonged industrial processing.

Q2: What specific quality control measures are implemented during production?
A2: SAM incorporates thermal shock testing and compressive strength evaluations to verify that each crucible meets the specified material characteristics. These controlled tests help confirm the 95% purity and uniform microstructure required for consistent performance in high-temperature environments.

Q3: What are the recommended storage conditions for this crucible?
A3: It should be stored in a clean, dry environment with controlled temperature and low humidity. These conditions minimise the risk of contamination and microcracking, thereby preserving its structural integrity and thermal properties over time.

Additional Information

Alumina (Al2O3) ceramics are extensively utilised in environments demanding high thermal resistance and chemical inertness. Their intrinsic properties, including high compressive strength and excellent electrical insulation, make alumina an essential material in high-temperature and chemically aggressive settings.

In research and industrial applications, alumina is valued for its ability to maintain dimensional stability under thermal cycling. Understanding the processing techniques and microstructural characteristics further highlights the relevance of alumina in fabricating components that operate reliably under severe conditions.
