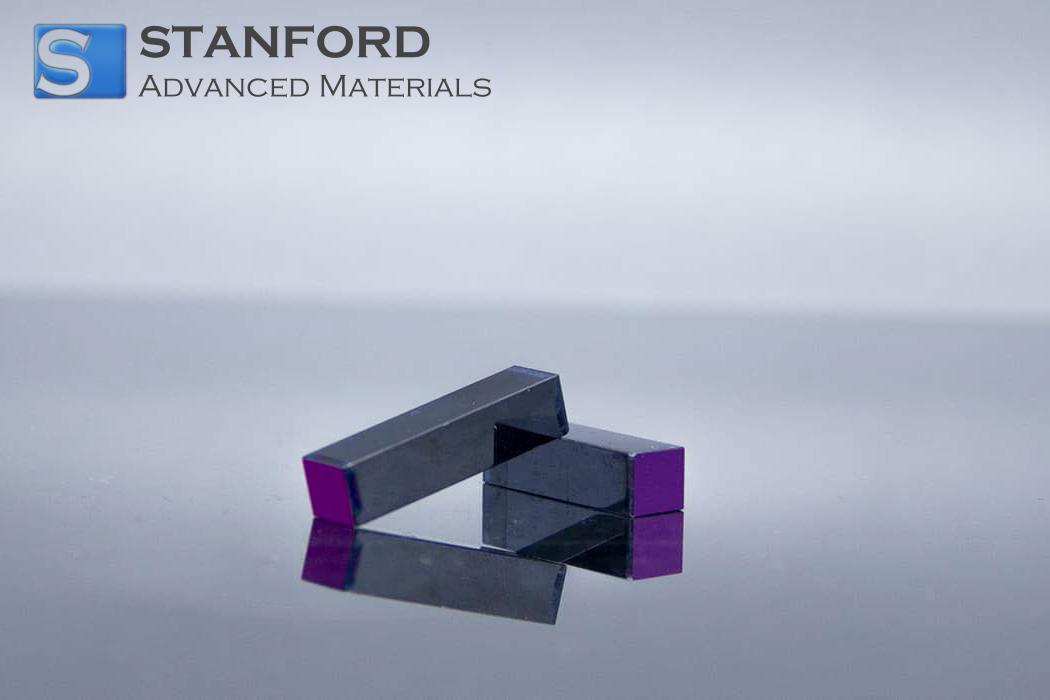

OP8205 ZnGeP2 (ZGP) Crystal Block θ=58° 5x3x12mm

ZnGeP2 (ZGP) Crystal Block θ=58° 5x3x12mm Description

ZnGeP2 (ZGP) is a highly efficient frequency-conversion crystal valued for its notable nonlinear, electro-optic, and optical properties. This ZGP Crystal Block with a 58° cut angle and dimensions of 5×3×12 mm provides exceptional transmission in the mid-infrared range while maintaining minimal absorption losses. Its high damage threshold and effective thermal conductivity make it particularly reliable under high-peak-power laser applications.

This crystal undergoes thorough quality control processes, including meticulous inspection for material purity and uniformity, to ensure consistent performance and long-term stability. Ideal for mid-infrared optical parametric oscillators (OPOs) and amplifiers, ZnGeP2 enhances functionalities in medical procedures, spectroscopy, and military countermeasure systems. Its precise cutting and advanced polishing strictly adhere to industry standards, resulting in a top-tier solution for demanding optical setups.

ZnGeP2 (ZGP) Crystal Block θ=58° 5x3x12mm Applications

ZnGeP2 (ZGP) crystal blocks with a 58° angle and 5×3×12 mm dimensions are highly regarded for advanced mid-infrared generation. Their high nonlinear coefficient, wide transparency range, and effective thermal conductivity deliver superior conversion efficiency and reliable performance in frequency mixing and laser output control. These properties enable innovative applications across industrial, research, and commercial sectors.

1. Industrial Applications

·         High-power laser systems for materials processing: ZnGeP2’s efficient nonlinear conversion supports rapid cutting and drilling in metallic and non-metallic substrates.

·         Remote sensing instrumentation: The crystal’s broad transmission range aids in detecting gases and measuring environmental conditions.

2. Research Applications

·         Mid-infrared optical parametric oscillators: The crystal’s wide transparency and high gain enable novel research in nonlinear optics.

·         Laser-based spectroscopy: ZGP facilitates high-resolution examinations of molecular structures in advanced photonics labs.

3. Commercial Applications

·         Medical laser devices: The crystal’s effective thermal handling allows accurate and stable performance in surgical and diagnostic systems.

·         Infrared countermeasure systems: ZGP enhances beam generation for effective protection in aviation and secure communication channels.

ZnGeP2 (ZGP) Crystal Block θ=58° 5x3x12mm Packaging

Each ZnGeP2 (ZGP) Crystal Block θ=58° measuring 5×3×12 mm is carefully enclosed in protective foam and sealed in an antistatic bag. A moisture-resistant container further safeguards against contaminants and physical damage. For optimal storage, keep it in a low-humidity, dust-free environment. The packaging includes tamper-evident seals to prevent contamination and ensure integrity. Custom labelling, size adjustments, and specialised enclosures are available upon request.

Packaging: Vacuum sealed, Wooden Box, or Customised.

ZnGeP2 (ZGP) Crystal Block θ=58° 5x3x12mm FAQs

Q1: What are the key material properties of ZnGeP2 (ZGP) Crystal Block θ=58° 5x3x12mm ?

A1: ZnGeP2 (ZGP) is a ternary chalcopyrite semiconductor crystal known for its high nonlinear optical coefficient, making it ideal for mid-infrared laser applications. It offers broad transmission from approximately 2 µm to 10 µm and has excellent thermal conductivity. The θ=58° orientation enhances phase-matching capabilities, reducing absorption losses in the mid-IR range. Its robust mechanical strength and relative hardness make it suitable for demanding optical setups.

Q2: How should this product be handled and stored?

A2: ZGP crystal blocks must be handled with clean, lint-free gloves in a controlled environment to avoid surface contamination or mechanical damage. They should be stored in a sealed container with desiccant, away from direct sunlight and extreme temperature fluctuations. Gentle cleaning with an approved solvent is recommended to maintain surface quality. Proper labelling and careful transport also ensure that the crystals remain free from stress or shocks.

Q3: Which quality standards and certifications apply to ZnGeP2 (ZGP) Crystal Block θ=58° 5x3x12mm ?

A3: Reputable suppliers adhere to strict ISO 9001 or similar quality management systems, ensuring traceability and consistent manufacturing processes. These crystals are typically inspected under rigorous optical metrology standards, such as MIL-PRF-13830B, to verify surface specifications and transmitted wavefront quality. Additionally, their environmental and safety compliance aligns with RoHS and REACH directives, confirming that all materials and production methods meet established regulatory and quality requirements.

Related Information

1. Material Properties and Advantages

Recognised for its notable non-linear optical attributes, the ZnGeP2 (ZGP) Crystal Block θ=58° 5x3x12 mm provides exceptional efficiency in frequency conversion processes. This specific crystal orientation, carefully set at 58°, allows for more effective phase matching, optimising its performance in generating mid-infrared laser outputs. ZGP exhibits high thermal conductivity and a broad transmission range, making it well-suited for demanding environments that require stable operation and precise wavelength tunability.

Meticulous craftsmanship further enhances the durability and optical integrity of this crystal block. Its compact 5x3x12 mm dimensions ease integration into various laser systems without sacrificing quality or performance. In addition, the crystal's robust structure delivers excellent damage thresholds, enabling consistent and prolonged use in both research settings and industrial laser applications.

2. Applications in Advanced Industries

Fostering innovation within multiple sectors, the ZnGeP2 (ZGP) Crystal Block θ=58° 5x3x12 mm is valued for its capacity to handle high-power laser beams in spectroscopy, medical diagnostics, and semiconductors. Its mid-infrared generation capabilities prove indispensable for hyperspectral imaging, allowing for precise identification of chemical compounds and materials in advanced manufacturing processes. In the defence industry, ZGP-based optical systems bolster advanced targeting and communication technologies where reliable, high-intensity laser outputs are critical.

This crystal block additionally supports next-generation fibre optics, offering enhanced transmission efficiency at longer wavelengths. By leveraging effective thermal properties and minimised absorption losses, the ZGP crystal bolsters data transfer rates and overall system reliability. As a result, industries requiring accurate laser generation at mid-infrared wavelengths rely on this specialised crystal for both short-term testing and long-term operational success.
