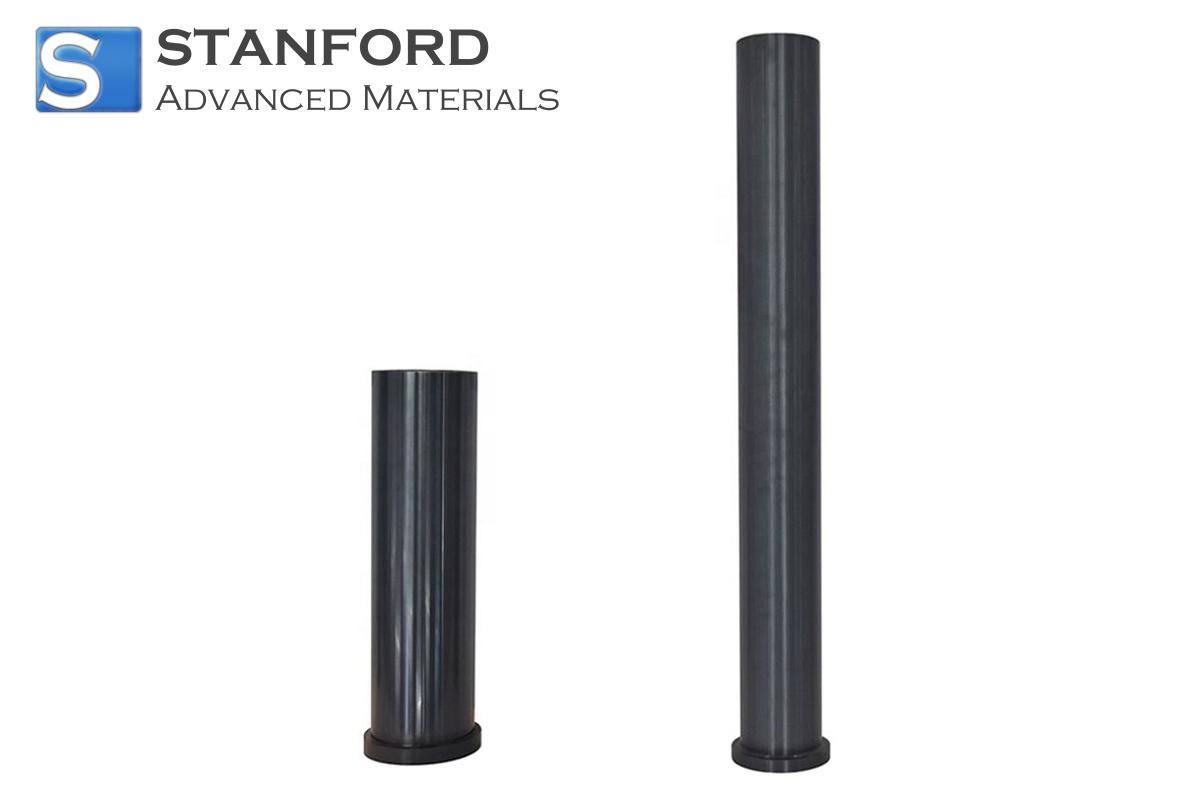

SN9999 Silicon Nitride Protection Tube Dia. 70 mm

Silicon Nitride Protection Tube Dia. 70 mm Description

Silicon Nitride Protection Tube Dia. 70 mm is a ceramic tube manufactured from high-purity Si3N4. The 70 mm diameter allows integration into systems requiring effective thermal management. With a compressive strength of 3000 Mpa, it maintains structural integrity under significant load, and its thermal conductivity of 29 W/(m·k) supports efficient heat dispersion. Operating up to 1500 ℃, the tube is suitable for environments demanding thermal stability and chemical inertness.

Silicon Nitride Protection Tube Dia. 70 mm Applications

Industrial Applications
- Used as an insulation barrier in heat-treatment furnaces to achieve temperature uniformity by leveraging high compressive strength and thermal stability.
- Applied as a protective sleeve for high-temperature processing equipment to mitigate thermal shock effects by utilising controlled thermal conductivity.

Electronics Applications
- Used as a housing component in semiconductor processing systems to reduce thermal gradients by leveraging silicon nitride’s chemical inertness and mechanical integrity.

Silicon Nitride Protection Tube Dia. 70 mm Packing

Silicon Nitride Protection Tube Dia. 70 mm is packaged in cushioned, sealed boxes with anti-static foam to avoid mechanical damage and contamination. The packaging incorporates moisture barrier materials and is stored under temperature-controlled conditions. Custom packaging options, including specialised inserts and labelling, are available to support specific handling and storage requirements, ensuring the product maintains its engineered properties during transit.

Frequently Asked Questions

Q1: How does the 3000 Mpa compressive strength impact performance?
A1: The 3000 Mpa compressive strength ensures the tube withstands mechanical loads in high-temperature environments, thereby reducing deformation risk during operational stress. This structural integrity is essential in maintaining protective performance where pressure fluctuations occur.

Q2: What handling and storage conditions are recommended?
A2: Store the tube in a low-humidity, temperature-controlled environment to preserve its mechanical and thermal properties. Use the provided anti-static, cushioned packaging to minimise contamination and mechanical shock during transport and storage.

Q3: What is the significance of the tube’s 29 W/(m·k) thermal conductivity?
A3: The thermal conductivity of 29 W/(m·k) facilitates efficient heat dispersion within high-temperature systems, thereby reducing local thermal gradients. This controlled heat transfer is key to preventing thermal-induced material stress and maintaining consistent performance.

Additional Information

Silicon nitride is a ceramic known for its exceptional mechanical strength, chemical inertness, and thermal stability. Its controlled microstructure results in low thermal expansion and high resistance to thermal shock, attributes that are critical in numerous industrial and electronic applications. Advances in fabrication techniques continue to enhance these properties, broadening the material’s usability under extreme conditions.

Research in high-performance ceramics emphasises the role of precise material engineering and quality control. Techniques such as scanning electron microscopy and thermal gravimetric analysis help refine the production process, ensuring that products like the Silicon Nitride Protection Tube meet rigorous application demands in environments where precision and durability are paramount.
