OP0526 Double concave lenses

Catalogue Number

OP0526

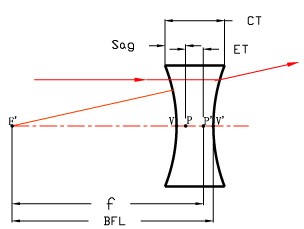

The negative lens features a defined curvature that produces diverging light when used with parallel input rays. Alternatively, the lens forms a virtual image when the input light is convergent.

INQUIRY

Description

Specification

LAST RECOMMENDATION

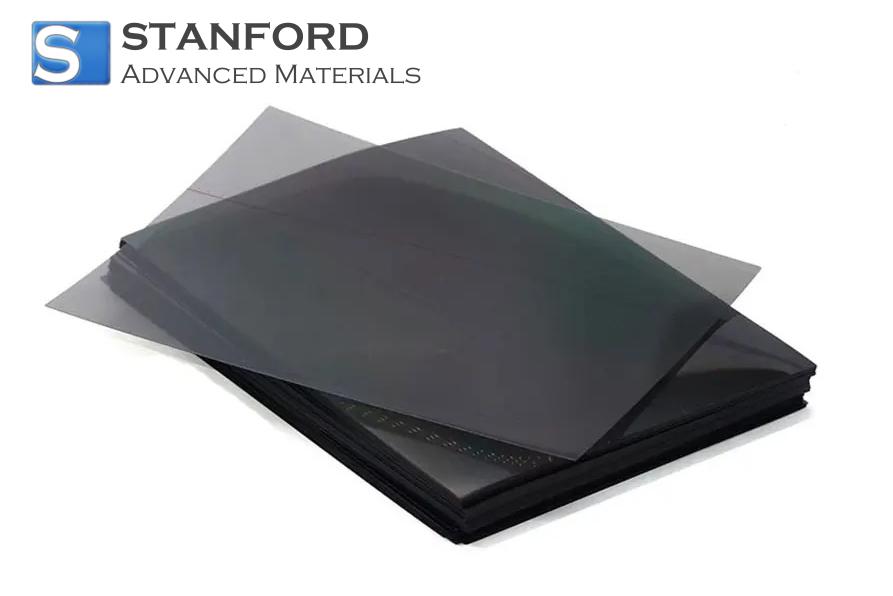

OP6825 polariser for liquid crystal display (LCD)

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Material	BK7 (or fused silica)
Design Wavelength	546.1 nm (632.8 nm for cylindrical lenses)
Design Refractive Index	1.5183 ± 0.0005 (1.5147 for cylindrical lenses)
Flatness	λ/4 @632.8 nm (x
Diameter Tolerance	+0.0, -0.15 mm
Paraxial Focal Length	±2%
Centre Tolerance	3 arcminutes
Light Aperture	>80%
Surface Quality	60-40 scratches and abrasions
Bevel	0.25 mm x 45°

Material	BK7 (Or Fused Silica)
Design Wavelength	546.1nm (632.8 nm for Cylindrical lenses )
Design Index	1.5183 ±0.0005 (1.5147 for Cylindrical lenses)
Flatness	l/4@632.8nm (x
Diameter Tolerance	+0.0, -0.15mm
Paraxial Focal Length	±2%
Center Tolerance	3 arc minutes
Clear Aperture	>80%
Surface Quality	60-40 scratch and dig
Bevel	0.25 mm x 45°

OP0526 Double concave lenses
