SAM offers Titanium Fasteners (Ti Fasteners) for purchase. These fasteners are produced in compliance with engineering standards thereby reducing assembly duration by 15% compared to standard components.

Home

Products

Non-ferrous Metal

Titanium

Titanium Metal

Machined Titanium

Catalogue Number	TM0152
Dimensions	Customized
Material	Gr1 Gr2 Gr5 Gr9
Density	4.5-4.51 g/cc
MSDS / SDS	Download MSDS / SDS

Stanford Advanced Materials (SAM) supplies titanium products for scientific and industrial applications in the United Kingdom. The company offers several types of titanium fasteners. SAM produces machined titanium items, such as Ti Fitting, Ti Flange, etc.

INQUIRY

Add to enquiry list

Description

Specification

SDS

Video

Titanium Fastener Description

Titanium Fastener components are manufactured from titanium alloy. They are used in aerospace, automotive, petroleum, chemical industries and other sectors. Their performance includes high corrosion resistance, high strength, reduced weight and reliable biocompatibility. Titanium fasteners can replace steel fasteners, thereby reducing weight and improving corrosion resistance. In addition, titanium fastening elements demonstrate measurable fatigue strength and creep resistance, thereby extending the service life of structures. Titanium fasteners are a recommended choice for applications requiring high performance fastening with resistance to corrosion.

Titanium Bolt Specification

Product	Titanium Bolt
Size	Diameter: M5-M24, Length: 10mm-300mm (0.39"-11.8")
Material	Gr.1, Gr.2, Gr.5, Gr.7
Standard	DIN912, DIN6912, DIN933, DIN931

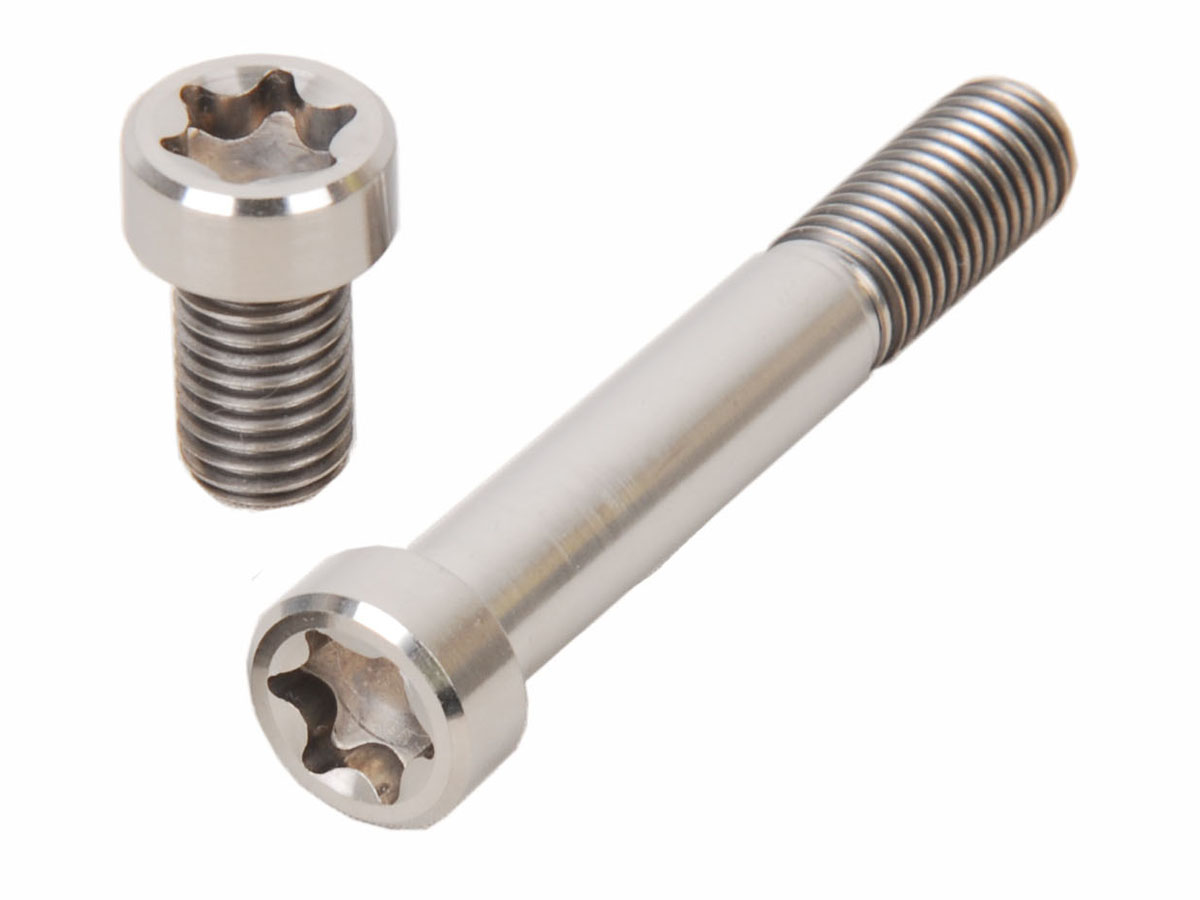

titanium bolts

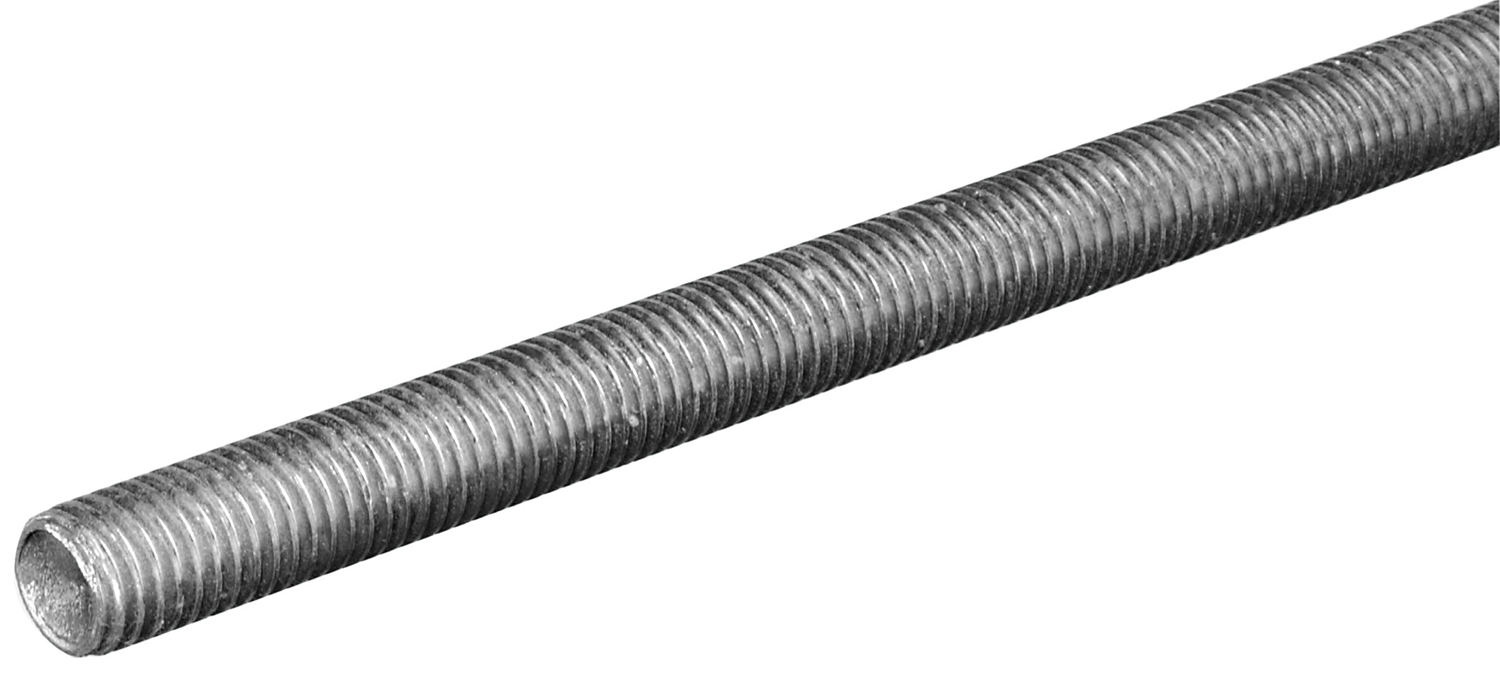

Titanium Threaded Rod Specification

Product	Titanium Threaded Rod
Size	Diameter: M5-M24, Length: 10mm-300mm (0.39"-11.8")
Material:	Gr.1, Gr.2, Gr.5, Gr.7, Gr.23
Standards	DIN912, DIN933, DIN7991, DIN7984, DIN6921, ISO 7380, JIS, BS, etc.

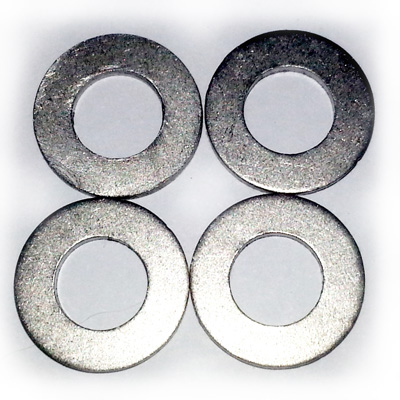

Titanium Washer Specification

Product	Titanium Washer
Size	OD: 5mm-200mm (0.20"-7.87"), ID: 1mm-100mm (0.04"-3.94"), Thickness: 0.1mm-30mm (0.004"-1.18")
Material	Gr.2, Gr.5
Standard	DIN125

Titanium Screw Specification

Product	Titanium Screw
Size	M1 to M42, Length: 10mm-300mm (0.39"-11.8")
Material	Gr1, Gr.2, Gr.5, Gr.7, Gr.12
Standards	DIN912, DIN933, DIN84, DIN85, DIN963, DIN7991, DIN6912, DIN931, ISO7380, etc.

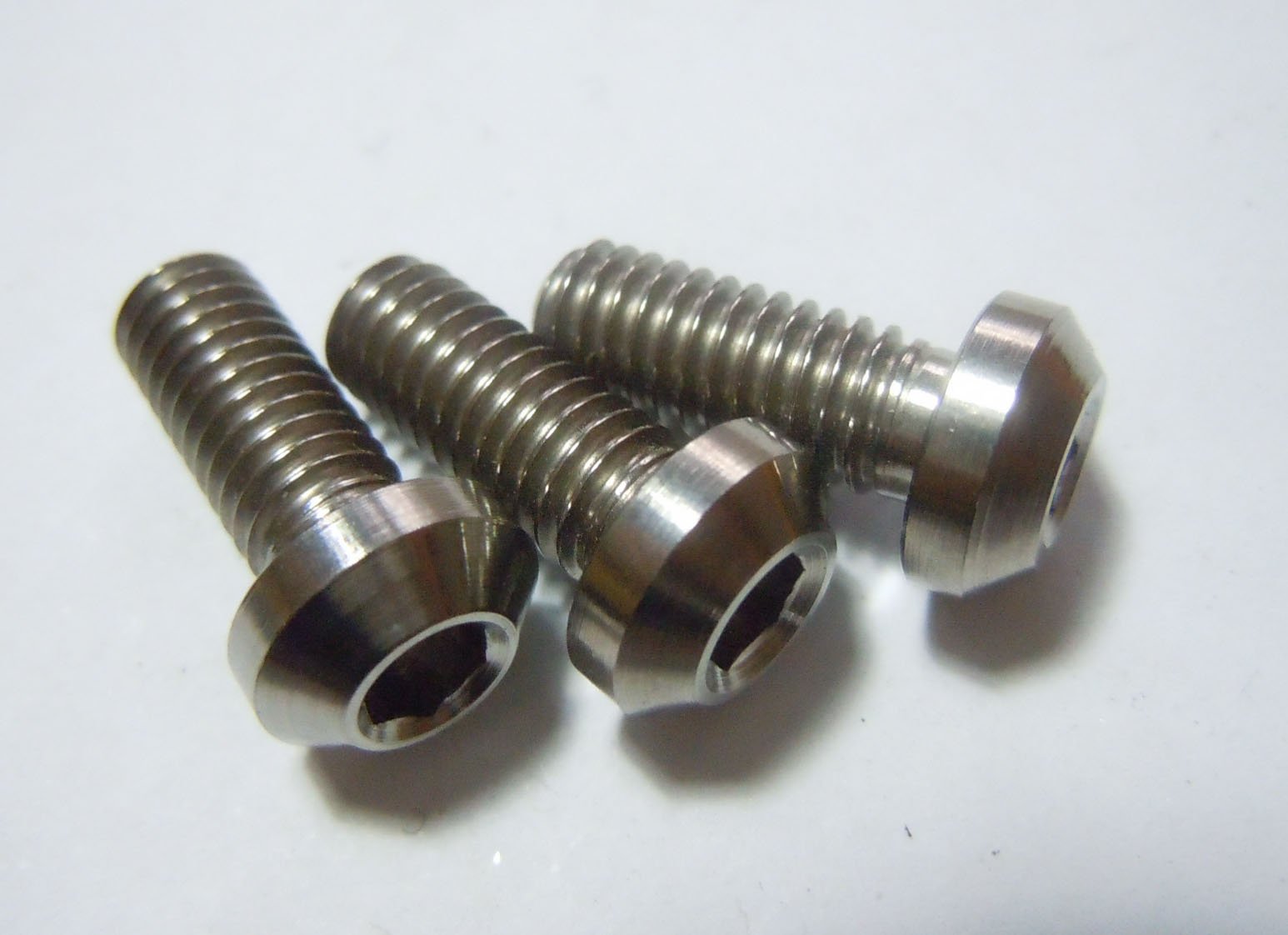

titanium screw

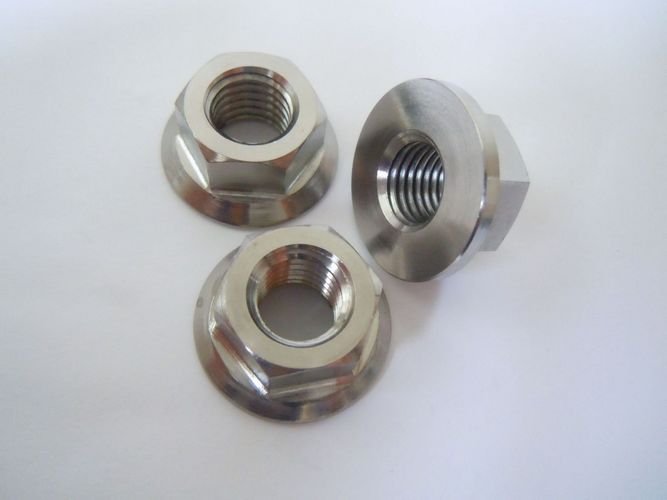

Titanium Nut Specification

Product	Titanium Nut
Size	M3-M22
Material	Gr1, Gr2, Gr5, Gr7, Ti6Al4V ELI
Standards	DIN, ISO, JIS, etc.

Applications of Titanium Fastening Elements

1. Aerospace: Titanium fastening elements are used in the aerospace industry to secure aircraft parts such as wings and fuselages and in satellite and launch vehicle assemblies. Their properties include high strength, corrosion resistance and reduced weight.

2. Automotive: Titanium fasteners are applied in automotive components such as engine parts and exhaust systems. Their use improves corrosion resistance and contributes to weight reduction.

3. Petroleum and Chemical Industries: Titanium fastening elements perform under harsh conditions. They secure pipes, valves and other equipment in chemical reactors, refineries and other processing units.

4. Medical: Titanium fastening elements are biocompatible. They are used in orthopaedic implants and surgical instruments to offer a secure fastening solution for devices used long term in the human body.

Packaging of Titanium Fastening Elements

Our titanium fastening elements are externally marked and labelled to ensure efficient identification and quality control. Measures are taken to avoid damage during storage or transport.

Related Articles:

The Discovery of Titanium

CP Titanium - Commercially Pure Titanium (1)

CP Titanium - Commercially Pure Titanium (2)

Titanium in the Aerospace Industry

Medical Grade Titanium Materials - Essential for the Medical Industry

Applications of Titanium in the Watch Industry

Titanium in Shipbuilding

Applications of Titanium in the Automotive Industry

Specification

Product	Titanium Bolt
Size	Diameter: M5-M24, Length: 10mm-300mm (0.39"-11.8")
Material	Gr.1, Gr.2, Gr.5, Gr.7
Standard	DIN912, DIN6912, DIN933, DIN931
