Titan Flange Description
Titanium flanges are produced from a titanium alloy that offers a high resistance to corrosion, increased strength and reduced mass. They resist chemically aggressive environments and are suitable for use in the oil, chemical and related industries. Titanium flanges have measured fatigue and creep performance which maintains operational consistency over time. They can be machined and assembled with standard methods. Titanium flanges serve in high-performance piping systems that require corrosion resistance and long-term durability.
Titan Flange Specification
Titanium Lap Joint Flange

Product
|
Titanium Lap Joint Flange
|
Size
|
NPS 1/2"-24"
|
Pressure
|
0.25 MPa–2.5 MPa
|
Material
|
Gr.1, Gr.2
|
Standard
|
ANSI B16.5
|
Titanium Pre-weld Flange

Product
|
Pre-weld Titanium Flange
|
Size
|
NPS 1/2"-80" (DN10-600)
|
Standard
|
ASME/ANSI B16.5, DIN 2630-2633
|
Material
|
Gr.1, Gr.2, Gr.7, Gr.9, Gr.12
|
Pressure
|
0.6 MPa–32 MPa
|
Operating Temperature
|
–60°C to 250°C
|

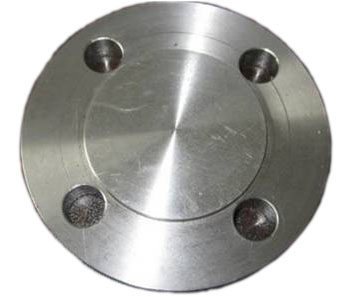

Titanium Blind Flange

Product
|
Titanium Blind Flange
|
Size
|
1/2"-24" ASME B16.5 24"-80" ASME B16.47
|
Material
|
Gr.1, Gr.2, Gr.5, Gr.7, Gr.9, Gr.12
|
Standard
|
ASME B16.5, ASME B16.47, ASME B16.36, DIN 86341-2000, DIN2505
|
Titan Flange Applications
1. Oil and Chemical Industry: Titanium flanges are used in this sector. They offer quantifiable corrosion resistance and strength. They are installed in pipelines, reactors and other process installations.
2. Aerospace Industry: Titanium flanges are applied in aircraft engines, airframes and related components. Their properties meet the technical requirements for critical parts.
3. Automotive Industry: Titanium flanges are used to improve corrosion resistance and reduce vehicle mass. They are positioned in fuel systems, exhaust assemblies and other components that require measured performance.
4. Medical Industry: Titanium flanges are used owing to their biocompatibility and resistance to corrosion. They find application in medical devices, implants and other long-term utilitarian uses.
Packaging of Titanium Flanges
Our titanium flanges are externally labelled and marked to support efficient identification and quality control. Measures are taken during storage and transport to prevent damage.
Related Articles:
When Titanium Was Discovered
CP Titanium - Commercially Pure Titanium (1)
CP Titanium - Commercially Pure Titanium (2)
Titanium in the Aerospace Industry
Medical-Grade Titanium Materials – Used in the Medical Industry
Application of Titanium in the Watch Industry
Titanium in Shipbuilding
Application of Titanium in the Automotive Industry
Specification
Titanium Lap Joint Flange

Product
|
Titanium lap joint flange
|
Size
|
NPS 1/2"-24"
|
Pressure
|
0.25Mpa-2.5Mpa
|
Material
|
Gr.1, Gr.2
|
Standard
|
ANSI B16.5
|

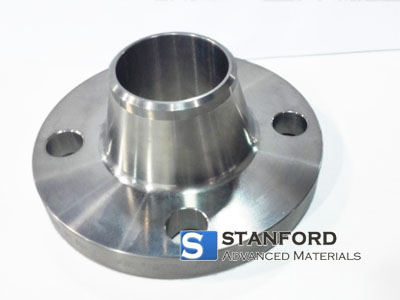

Titanium Weld Neck Flange

Product
|
Titanium weld neck flange
|
Size
|
NPS 1/2"-80" (DN10-600)
|
Standard
|
ASME/ANSI B16.5, DIN 2630-2633
|
Material
|
Gr.1, Gr.2, Gr.7, Gr.9, Gr.12
|
Pressure
|
0.6Mp-32Mp
|
Working temperature
|
-60°C-250°C
|
Titanium Blind Flange

Product
|
Titanium blind flange
|
Size
|
1/2"-24" ASME B16.5 24"-80" ASME B16.47
|
Material
|
Gr.1, Gr.2, Gr.5, Gr.7, Gr.9, Gr.12
|
Standard
|
ASME B16.5, ASME B16.47, ASME B16.36, DIN 86341-2000, DIN2505
|
