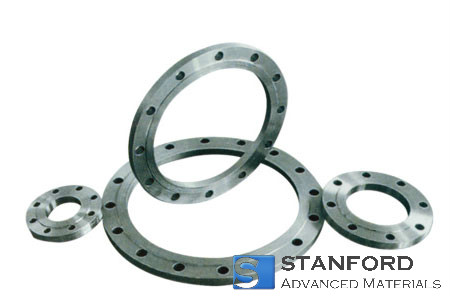

NC2070 Nickel MP35N flange manufactured from a high‑performance alloy

Catalogue Number	NC2070
Dimensions	Customized
Shape	Flange
M.O.Q	$300.00
Composition	Co30%; Ni35%; Cr20%; Mo12%

Stanford Advanced Materials is your designated supplier for acquiring MP35N in various forms. We offer the high‐performance alloy required for your forthcoming research or industrial project. Customers may select from a broad range of commercially pure nickel and alloyed products available online. Orders are processed efficiently and dispatched promptly.

Other forms of MP35N: Tube, Rod/Bar, Sheet/Plate, Wire.

INQUIRY

Description

Specification

LAST RECOMMENDATION

NC2071 Nickel MP35N high-performance alloy rod/bar

NC2072 Nickel MP35N high-performance alloy plate/sheet

Engineers produce the NC2073 Nickel MP35N tube from a high-performance alloy.

NC2074 Nickel MP35N wire from a high-performance alloy

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Chemical Composition Range (UNS R300035)
Element	Weight %	Element	Weight %
Cobalt	Minimum 30.0	Chromium	19.0–21.0
Nickel	33.0–37.0	Molybdenum	9.0–15.0
Titanium	1.0	Iron	1.0
Carbon	0.025	Manganese	0.15
Phosphorus	0.015	Sulphur	0.01
Silicon	0.15
Maximum %, if no range is provided

Melting Range	2400–2625°F	1315–1440°C
Modulus of Elasticity, RT²	34 x 10⁶ psi	234 x 10³ MPa
Poisson’s Ratio	0.4	0.4
Coefficient of Thermal Expansion	7.4 x 10⁻⁶/°F	13.5 x 10⁻⁶/°C
Electrical Resistivity @ RT	40.7 µΩ in.	103.3 µΩ·cm
Thermal Conductivity	7.77 BTU/hr·ft·°F	13.4 W/m·K
Density	304 lb/in³	8.41 g/cm³
Relative Magnetic Permeability	1.0009 µ	1.0009 µ
Specific Heat	0.18 BTU/lb·°F	753 J/kg·K

Condition	Approximate Tensile Strength		Approximate Operating Temperature
Condition	N/mm²	ksi	°C	°F
Annealed	800–1000	116–1450	-200 to +315	-330 to +600
Spring Treatment	1400–1900	203–276	-200 to +315	-330 to +600
Spring Treatment + Ageing	1900–2200	276–319	-200 to +315	-330 to +600

Composition Range (UNS R 300035)
Element	Wt%	Element	Wt%
Cobalt	30.0 minimum	Chromium	19.0-21.0
Nickel	33.0-37.0	Molybdenum	9.0-15
Titanium	1.0	Iron	1.0
Carbon	0.025	Manganese	0.15
Phosphorous	0.015	Sulfur	0.01
Silicon	0.15
Maximum % unless a range is indicate
