Aluminate Phosphor Powder Description
Aluminate phosphors are modified YAG phosphors that exhibit chemical stability, resistance to ageing and a luminous conversion efficiency. The luminescence covers various colours, for example green, yellow‐green, yellow, orange, etc. They can be utilised in the manufacture of white LEDs with a range of colour temperatures and a high colour rendering index (Ra ≥90).
Properties:
- Broad emission, 120nm FWHM
- Selection of yellow and green wavelengths, 515–565nm
- Resistant to heat and moisture
- High thermal stability; retains 90% luminous output at 200℃
Aluminate Phosphor Powder Specifications
Type
|
Model
|
Colour
|
Chromaticity Coordinates
CIE 1931
|
Spectral Power
|
D50 (µm)
|
x
|
y
|
Chip Excitation Wavelength (nm)
|
Peak Wavelength λp (nm)
|
YAG
|
LMY-4155-C
|
light yellow
|
0.416
|
0.554
|
450-470
|
532
|
10±1
|
LMY-4255-C
|
light yellow
|
0.426
|
0.548
|
450-470
|
534
|
10±1
|
LMY-4255-CC
|
light yellow
|
0.426
|
0.548
|
450-470
|
534
|
5±1
|
LMY-4354-C
|
yellow
|
0.436
|
0.546
|
450-470
|
538
|
10±1
|
LMY-4453-C
|
yellow
|
0.446
|
0.533
|
450-470
|
543
|
10±1
|
LMY-4453-CC
|
yellow
|
0.446
|
0.533
|
450-470
|
542
|
5±1
|
LMY-4749-C
|
dark yellow
|
0.471
|
0.493
|
450-470
|
552
|
10±1
|
LMY-4749-CC
|
dark yellow
|
0.471
|
0.493
|
450-470
|
551
|
5±1
|
LMY-4850-C
|
dark yellow
|
0.486
|
0.504
|
450-470
|
553
|
10±1
|
LMY-4949-C
|
dark yellow
|
0.498
|
0.493
|
450-470
|
558
|
10±1
|
LMY-5049-C
|
dark yellow
|
0.502
|
0.489
|
450-470
|
563
|
10±1
|
LMY-4255H-B
|
light yellow
|
0.425
|
0.551
|
450-470
|
538
|
15±1
|
LMY-4255H-C
|
light yellow
|
0.425
|
0.551
|
450-470
|
538
|
10±1
|
LMY-4354H-B
|
yellow
|
0.436
|
0.543
|
450-470
|
540
|
15±1
|
LMY-4453H-B
|
yellow
|
0.447
|
0.535
|
450-470
|
543
|
15±1
|
LMY-4453H-C
|
yellow
|
0.447
|
0.535
|
450-470
|
543
|
10±1
|
LMY-4652H-B
|
dark yellow
|
0.462
|
0.523
|
450-470
|
548
|
15±1
|
LMY-4453SH-C
|
yellow
|
0.437
|
0.542
|
450-470
|
539
|
10±1
|

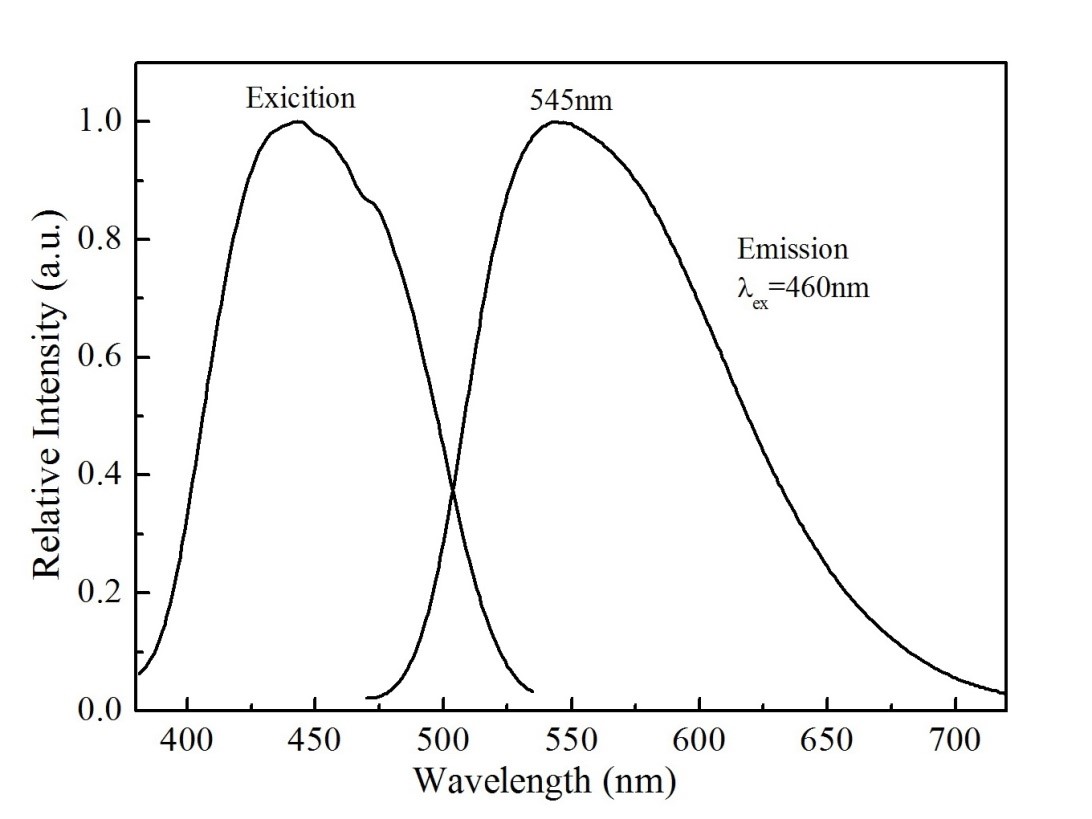

Aluminate Phosphor Spectrum:

Applications of Aluminate Phosphor:
- General lighting
- LED retrofit lamps
- Architectural installations
- Retail display systems
- Commercial/industrial applications
- Entertainment lighting
- Automotive interior lighting
Display backlighting
- Televisions and monitors
Tablet PCs and mobile displays, etc.
