Nitridphosphor Powder Description
Nitrid-Phosphor-Pulver is an alkaline earth metal silicide nitrid phosphor that is activated by rare earth ions and exhibits strong M–N bonding. The emission peak wavelength is adjustable from 610–670 nm, achieving high luminous efficacy and stable performance. It is used mainly in the production of white LEDs with high colour rendition. White LEDs produced with this phosphor can reach a colour rendering index of 95 or above.
As a global supplier of Nitridphosphor, Stanford Advanced Materials (SAM) has over 20 years’ experience in producing and selling high‐quality Nitridphosphor at competitive prices.
Specifications of Nitrid Phosphor Powder
The emission peak wavelength of Nitridphosphor is adjustable from 610–670 nm, achieving high luminous efficacy and stable performance. It is used mainly in the production of white LEDs with high colour rendition. White LEDs produced with this phosphor can reach a colour rendering index of 95 or above.
As a global supplier of Nitridphosphor, Stanford Advanced Materials (SAM) has over 20 years’ experience in producing and selling high‐quality Nitridphosphor at competitive prices.
Typ
|
Modell
|
Farbe
|
Chromaticity Coordinates
CIE 1931
|
Spectral Output
|
x
|
y
|
Chip Excitation Wavelength (nm)
|
Peak Wavelength λp (nm)
|
Nitrid
|
SAM-R-6237
|
red
|
0.634
|
0.366
|
350–550
|
612
|
SAM-R-6336
|
light red
|
0.633
|
0.366
|
350–550
|
615
|
SAM-R-6534
|
red
|
0.653
|
0.340
|
350–550
|
625
|
SAM-R-6633
|
pink
|
0.663
|
0.335
|
350–550
|
630
|
SAM-R-6831
|
deep red
|
0.680
|
0.319
|
350–550
|
645
|

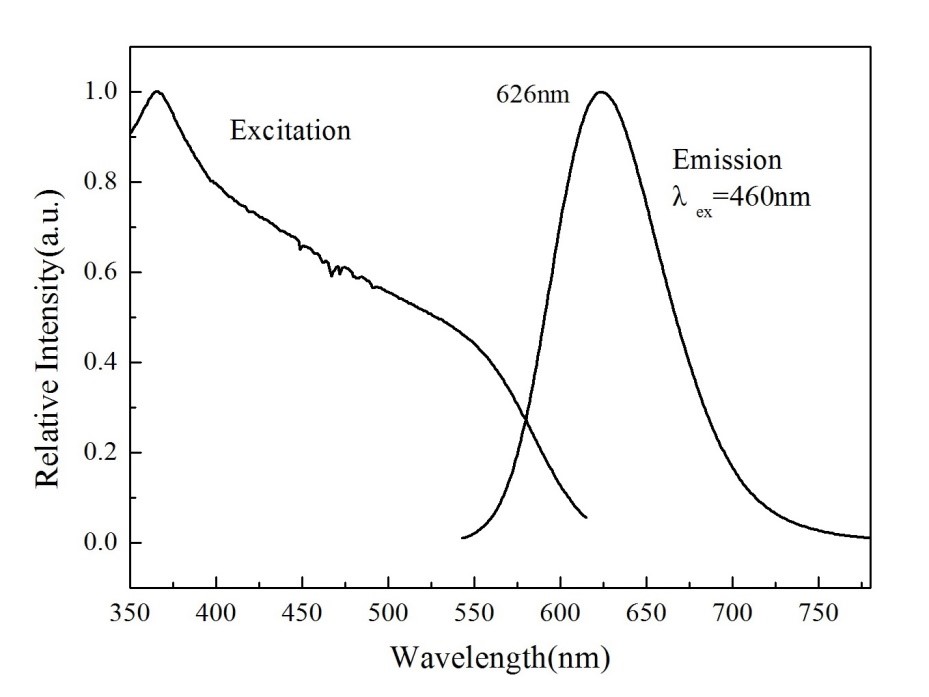

Spectrum of Nitrid Phosphor Powder
Nitridphosphorpulver Applications
- General lighting
- LED retrofit lamps
- Architectural lighting
- Retail display
- Commercial/Industrial
- Entertainment
- Automotive interior lighting
Display backlighting
- Televisions and monitors
Tablet PCs and mobile displays, etc.
