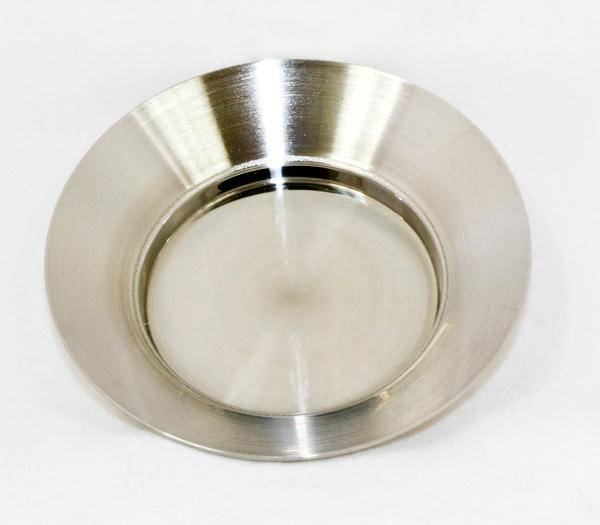

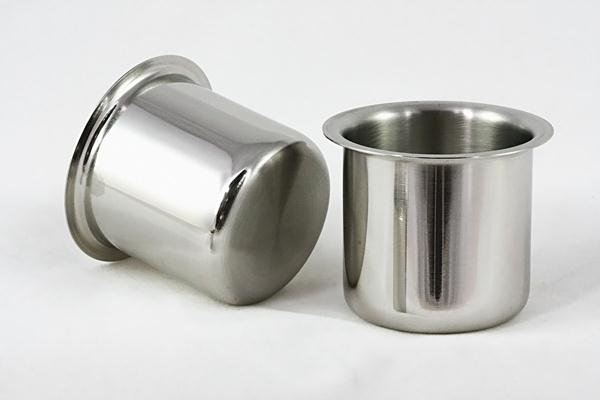

Platinum Crucibles & Mould Description
Our Pt crucibles and Pt moulds are manufactured from a 5% Au-Pt alloy. These 5% Au-Pt crucibles and moulds are used for sample preparation prior to XRF analysis. The non-wetting property of this material facilitates the removal of bead samples after melting.
Below is our standard product list. Specially engineered items are available on request. We also supply lids that are compatible with nearly all crucibles. For further details, please contact us at any time.

Specifications of Platinum Crucibles and Moulds
All weights are in grams and all dimensions in millimetres.
1. Crucibles
Code
|
A
|
B
|
C
|
D
|
Estimated Weight (g)
|
PC1
|
41
|
40
|
41
|
49
|
116
|
PC2
|
41
|
40
|
41
|
49
|
80
|
PC3
|
44
|
40
|
44
|
52
|
90
|
PC4
|
38
|
40
|
42
|
50
|
75
|
PC5
|
28
|
40
|
38
|
50
|
70
|
PC6
|
28
|
40
|
40
|
50
|
75
|
PC7
|
22
|
46
|
34
|
54
|
80
|
PC9
|
41
|
40
|
42
|
50
|
90
|
PC10
|
32.7
|
40
|
40.4
|
50
|
78
|

2. Moulds
Code
|
A
|
B
|
C
|
D
|
Estimated Weight (g)
|
PM2
|
30/32
|
3
|
5
|
55
|
40
|
PM3
|
30/32
|
3.5
|
11.5
|
65
|
50
|
PM8
|
32/33.5
|
3.5
|
11.5
|
65
|
50
|
PM10
|
33.5/35.5
|
3.5
|
11.5
|
65
|
50
|
PM6
|
35.5/36.5
|
3
|
5
|
55
|
50
|
PM5
|
35.5/36.5
|
3.5
|
11.5
|
65
|
50
|
PM7
|
39.5/40.5
|
3
|
11.5
|
65
|
58
|
PM4
|
39.5/40.5
|
3.5
|
11.5
|
65
|
58
|
PM9
|
39.5/40.5
|
3
|
11.5
|
65
|
58
|
PM11
|
30/32
|
3.6
|
10.2
|
65
|
70
|

Application of Platinum Crucibles and Moulds
Platinum crucibles and moulds are used for high-temperature applications such as the melting and casting of metals, the production of high purity chemicals, and the conduction of high-temperature reactions.
Packaging of Platinum Crucibles and Moulds
Our platinum crucibles and moulds are managed carefully during storage and transport in order to preserve the original condition of our product.
