Wolfram (W) Crucible Description
Wolfram (W) crucibles are frequently utilised as evaporation sources due to their high purity, elevated melting point and low vapour pressure. Numerous factors that determine evaporation performance depend on the quality of the crucible that contains the evaporation materials.
Wolfram (W) Crucible Specifications
The following crucibles are standard products employed by Stanford Advanced Materials. Other custom sizes are available upon request.
The crucible product code is composed as follows:
Abbreviations and Code:
C conical crucible
D double-walled crucible
Ø rim
 |
 |
Code: W 5-30 Capacity: 5 cm³
|

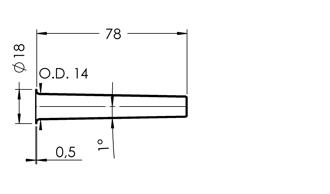

Code: W 10-18 Capacity: 10 cm³
|
 |

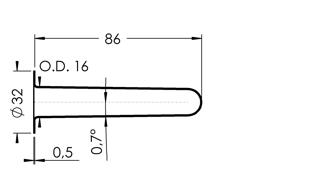

Code: W 10-32 Capacity: 10 cm³
|
Wolfram (W) Crucible Applications
Wolfram (W) crucibles are used as containers for high-temperature processes. They are applied in sapphire crystal growth, the melting of rare earth materials and the coating industry.
Wolfram (W) Crucible Packaging
Our Wolfram (W) crucibles are clearly marked and labelled externally to ensure efficient identification and quality control. Care is taken to prevent damage during storage or transport.
