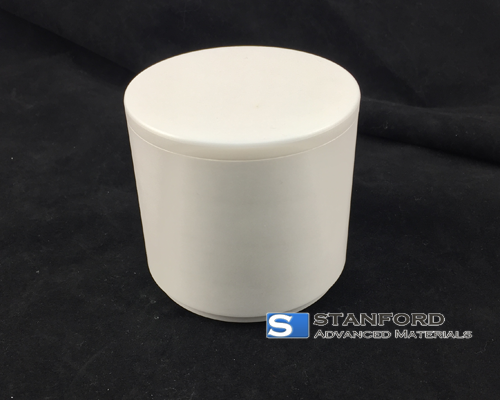

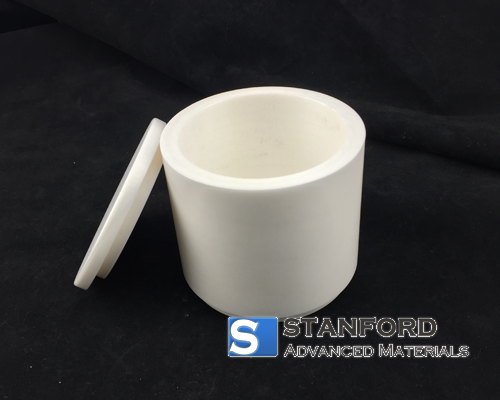

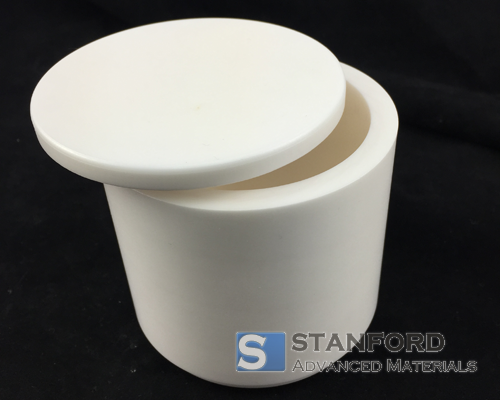

Description of Yttria Stabilised Zirconium Dioxide Jar with Lid
Performance of Zirconium Dioxide Ceramic
Density
|
6.05 g/cm³
|
Water Uptake
|
<0.05%
|
Firing Temperature
|
1550 °C
|
Hardness
|
1350 HV
|
Flexural Strength
|
950 MPa
|
Compressive Strength
|
25 000 MPa
|
Fracture Toughness
|
6–8 MPa-m1/2
|
Thermal Expansion Coefficient
|
9.5×10⁻6 /°C
|
Other names for Yttria Stabilised Zirconia Jar: Yttria Stabilised Zirconia Grinding Jar (YSZ Grinding Jar), Zirconia Jar, and Zirconium Oxide Jar.
Advantages of Yttria Stabilised Zirconia Jar with Lid
- High density
- High hardness and toughness, being 60 times harder than standard steel
- High thermal expansion and low thermal conductivity
- Impact toughness
- High corrosion and wear resistance
- Cost efficiency and long service life

Specifications for Yttria Stabilised Zirconium Dioxide Jar with Lid
|
TYP-MQ
|
TYP-GT
|
Capacity
|
50 mL
|
50 mL
|
Outer Diameter
|
55 mm
|
65 mm
|
Height
|
60 mm
|
40 mm
|
Wall Thickness
|
6 mm
|
6 mm
|
Lid Thickness
|
6 mm
|
6 mm
|
The dimensions above are provided for reference only. Please contact us for precise specifications or tailored queries.
*Grinding ball recommendation: For a 50 mL YSZ jar, it is recommended to use 50 pieces of 5 mm diameter balls or 8 pieces of 10 mm diameter balls.
Applications of Yttria Stabilised Zirconia Jar with Lid
- YSZ grinding jars are used to mill materials into extremely fine powder, which is employed in mineral processing, paints, pyrotechnics, ceramics and selective laser sintering.
- Zirconium dioxide jars and balls exhibit stable abrasive resistance, thereby preventing contamination during the milling process.
- YSZ jars are suitable for use in horizontal roll mills, vibratory mills, vertical stirring mills, as well as various high-speed grinding pin mills. They are available in specified volumes.
Packaging of Yttria Stabilised Zirconia Jar with Lid
SAM's zirconium dioxide grinding jars and YSZ grinding jars are handled with care to minimise damage during storage and transport, thereby preserving the quality of the products in their original state.
Safety Data Sheet (MSDS) for your reference!
