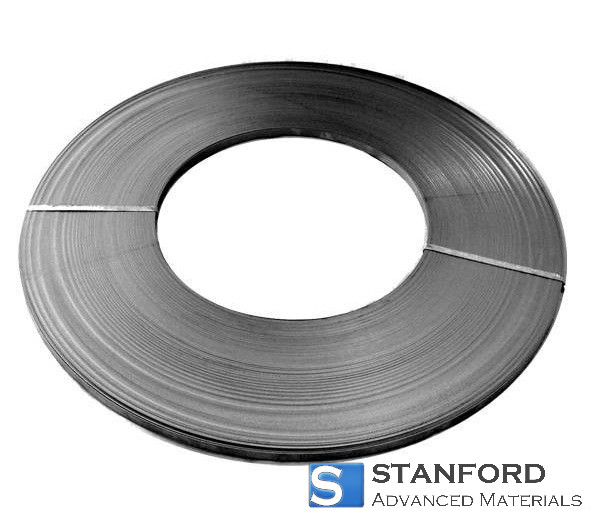

Description of the Mixed Metal Oxide Titanium Band Anode
Mixed metal oxide (MMO) anodes, also known as dimensionally stable anodes, are a type of protective anode used for impressed current systems. They consist of rare earth oxides applied to a titanium substrate. The MMO coating exhibits a low consumption rate; consequently, the metal dimensions remain unchanged throughout the anode’s service life, thereby ensuring consistently low electrical resistance. These anodes are employed in environments such as seawater, brackish water, fresh water, carbon backfill and concrete.

Advantages
- High resistance under conditions influenced by both oxygen and chlorine
- Various product compositions available for specified applications
- Consistent performance in acidic media
- Proven operational longevity
SPECIFICATION OF THE MIXED METAL OXIDE TITANIUM BAND ANODE
Anode Dimensions
|
0.635 mm thick x 6.35 mm wide x Length
|
Standard Coil Length
|
152 metres
|
Shipping Coil Weight
|
2.8 kg
|
Service Life
|
50 years
|
Electrical Output
|
17 mA/m
|
Design Requirements
|
Chemical Composition
|
Iron
|
0.20% maximum
|
Carbon
|
0.08% maximum
|
Nitrogen
|
0.03% maximum
|
Hydrogen
|
0.015% maximum
|
Oxygen
|
0.18% maximum
|
Other Elements (individual)
|
<0.1
|
Other Elements (total)
|
<0.4
|
Titanium
|
Balance
|
Applications of the Mixed Metal Oxide Titanium Band Anode
- Manufacture and supply of a range of anodes for the electrochemical industry
- Internal protection for capacitors and process equipment
- Internal protection for water tanks and pipelines
- Protection of reinforced concrete structures
