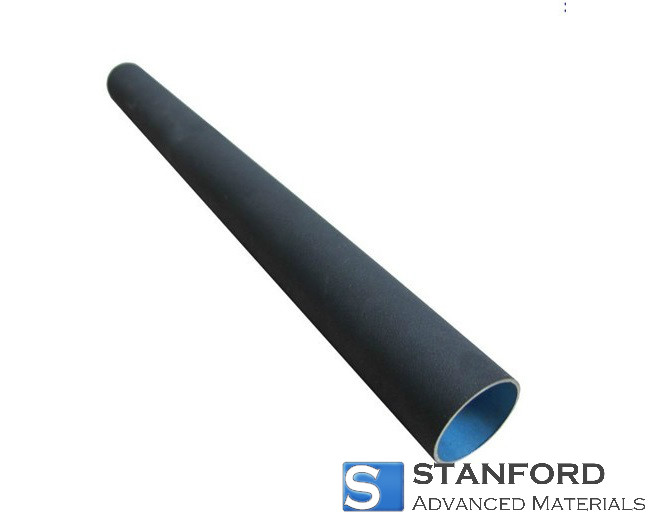

Description of the Mixed Metal Oxide Titanium Tube Anode
Mixed Metal Oxide (MMO) anodes, also known as form‑stable anodes, are a type of sacrificial anode for impressed current systems. They are composed of rare earth oxide applied onto a titanium substrate. The MMO coating exhibits a low consumption rate, thereby maintaining constant metal dimensions throughout the anode's service life, which results in a stable low resistance. These anodes are used in environments such as sea water, brackish water, fresh water, carbon backfill and concrete.

Advantages
- High resistance under conditions influenced by both oxygen and chlorine
- Various product compositions available for specific applications
- Maintains performance in acidic media
- Extended service life
Specifications for the Mixed Metal Oxide Titanium Tube Anode
Dimensions
|
Current Capacity
|
Service Life
|
Diameter 25 mm x 1 000 mm length
|
8 A (based on 100 A/m²)
|
20 years
|
Diameter 25 mm x 500 mm length
|
4 A (based on 100 A/m²)
|
20 years
|
Diameter 19 mm x 1 200 mm length
|
7 A (based on 100 A/m²)
|
20 years
|
Diameter 32 mm x 1 200 mm length
|
12 A (based on 100 A/m²)
|
20 years
|
Applications of the Mixed Metal Oxide Titanium Tube Anode
- Corrosion protection for pipelines
- Reinforced concrete structures
- Cathodic protection of deep wells
- Soil environments
- Environments with the presence of O2, Cl2 or a combination of both
