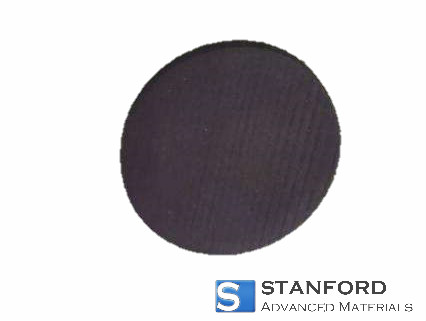

Cerhexaborid Disc Description
The Cerhexaborid disc undergoes a meticulous manufacturing process. It is primarily sintered, during which powdered Cerhexaborid is compressed and heated. Consequently, this process produces a dense, rigid ceramic structure that preserves the defined properties of Cerhexaborid. The component is designed for technological applications that require efficient electron emission. It produces reliable electron beams and increases beam intensity. The disc is known for its high brightness; this improvement is critical for achieving enhanced resolution in electron microscopy.
Ceriumhexaborid Disc Specification
Parameter
|
Units
|
CeB6
|
Stoichiometry
|
N/A
|
~6
|
Metal Impurities
|
ppm by weight
|
<30
|
Density
|
g/cm³
|
4.80
|
Coefficient of Thermal Expansion
|
α*10⁶
|
6.2
|
Electrical Specific Resistance
|
μΩ-cm
|
~65
|
Effective Work Function (100) at 1800K
|
eV
|
2.65
|
Spectral Emissivity at 0.65 Micrometres
|
N/A
|
0.779
|
Evaporation Rate at 1800K (UHV)
|
g
|
1.6×10⁻⁹
|
Orientation Tolerance for a Specified Alignment
|
Degrees
|
<2
|
Pyrolytic Block Assembly Resistance at 1800K
|
Ohm
|
1.45
|
Prototyping service is also available for other ceramic materials
Alumina
Aluminium Nitride
Boron Nitride
Silicon Carbide
Silicon Nitride
Zirconium Dioxide
Applications of the Cerhexaborid Disc
Electron microscopes, such as SEM and TEM
* X-ray discs
* Electron lithography
* Electron beam welding
Ceriumhexaborid Disc Packaging
The Ceriumhexaborid discs are clearly labelled and marked to ensure effective identification and quality control. Special care is taken during storage or transport to prevent any damage.
