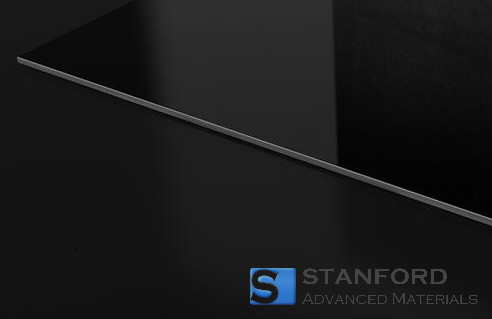

Ceriumhexaboride Sheet Description
Ceriumhexaboride sheet is a component manufactured from Ceriumhexaboride (CeB6). It is known for its ability to emit electrons under heat treatment via thermionic emission. This sheet was designed to deliver reliable and efficient electron beams and is used in advanced technological applications that require high electron emission performance. The CeB6 sheet, valued for its thermionic properties, stability and capacity to achieve high brightness, enhances the resolution in electron microscopy.

Ceriumhexaboride Sheet Specification
Parameter
|
Units
|
CeB6
|
Stoichiometry
|
N/A
|
~6
|
Metal impurities
|
Ppm by weight
|
<30
|
Density
|
g/cm³
|
4.80
|
Thermal expansion coefficient
|
α*10⁶
|
6.2
|
Electrical resistivity
|
μΩ-cm
|
~65
|
Effective work function (100) at 1800K
|
eV
|
2.65
|
Spectral emissivity at 0.65 micrometres
|
N/A
|
0.779
|
Evaporation rate at 1800K (UHV)
|
g
|
1.6×10-9
|
Orientation tolerance for a specific alignment
|
Degrees
|
<2
|
Pyrolytic block assembly resistance at 1800K
|
Ohm
|
1.45
|
Prototyping service available for other ceramic materials
Alumina
Aluminium Nitride
Boron Nitride
Silicon Carbide
Silicon Nitride
Zirconia
Ceriumhexaboride Sheet Applications
For coating certain high-current hot cathodes
* Electron microscopes such as SEM, TEM
* X-ray tubes
* Electron lithography
* Electron beam welding
Ceriumhexaboride Sheet Packaging
Ceriumhexaboride sheets are labelled to ensure efficient identification and quality control. Measures are taken to prevent any damage during storage or transport.
