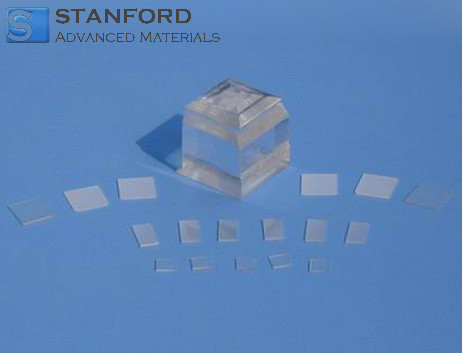

CY2298 Potassium Tantalate (KTaO3) Crystal Substrate

Catalogue Number	CY2298
Dimensions	20x20x0.5mm, 10x10x0.5mm, 5x5x0.5mm
Material	KTaO3
Orientation	<100>, <110>, <111>
Growth Method	Czochralski method

Stanford Advanced Materials (SAM) offers KTaO3 single crystal substrates. The sales team responds to enquiries within 24 hours and provides service in accordance with previously set standards.

INQUIRY

Description

Specification

LAST RECOMMENDATION

GA2171 Gallium arsenide wafer (GaAs)

NR2172 Gallium Nitride Wafer

CY2173 Sapphire Wafer

CY2174 Silicon wafer

CY2175 Silicon Carbide Wafer

GA2268 Gallium-Antimonide Wafer (GaSb)

GA2269 Gallium Phosphide Wafer (GaP)

IN2270 Indium-Antimonide wafer

IN2271 Indium Arsenide Wafer

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Molecular Formula	KTaO3 (KT)
Point Group	m3m
Cell Parameter	0.3984 nm
Melting Point	1352.2 °C
Density	7.025 ^g/cm3
Mohs Hardness	6
Growth Method	Czochralski method
Refractive Index	2.226 @633 nm, 2.152 @1539 nm
Coefficient of Thermal Expansion	4.027^{×10^-6/K}
Specific Heat (J K^-1 g^-1)	0.378
Transmission Range (nm)	380 ~ 4000
Orientation	<100>, <110>, <111>
Standard Dimensions	20x20x0.5 mm, 10x10x0.5 mm, 5x5x0.5 mm Or as required by the customer
Polishing	Single-side polished (SSP) or double-side polished (DSP)

Molecular formula	KTaO3 (KT)
Point group	m3m
Cell parameters	0.3984nm
Melting point	1352.2 °C
Density	7.025 g/cm³
Mohs hardness	6
Growth method	Czochralski method
Refractive index	2.226@633nm, 2.152@1539nm
Coefficient of thermal expansion	4.027*10^-6/K)
Specific heat (temperature JK^-1g^-1)	0.378
Transparent bands (nm)	380~4000
Orientation	<100>, <110>, <111>
Regular size	20x20x0.5mm, 10x10x0.5mm,5x5x0.5mm Or according to customer's requirements
Polishing	Single side polished (SSP) or Double side polished (DSP)

CY2298 Potassium Tantalate (KTaO3) Crystal Substrate

Description of Potassium Tantalate Crystal Substrates

Specifications of Potassium Tantalate Crystal Substrates

Applications of Potassium Tantalate Crystal Substrates
