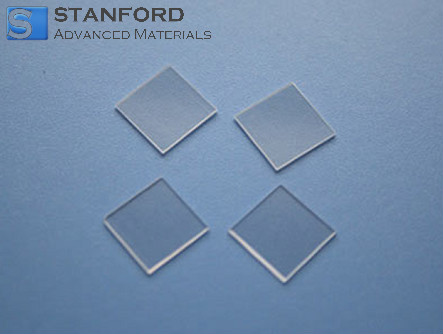

CY2300 Lithium Fluoride (LiF) crystal substrate

Catalogue Number	CY2300
Dimensions	5x5mm, 10x10mm, Dia1"(25.4mm), Dia4"(100mm)
Material	LiF
Thickness	0.5mm, 1.0mm, 2.0mm, 5.0mm

Stanford Advanced Materials (SAM) supplies crystalline LiF substrates. The company provides customers with a range of LiF materials that have been measured for electrical uniformity and surface finish in accordance with standard specifications.

INQUIRY

Description

Specification

LAST RECOMMENDATION

GA2171 Gallium arsenide wafer (GaAs)

NR2172 Gallium Nitride Wafer

CY2173 Sapphire Wafer

CY2174 Silicon wafer

CY2175 Silicon Carbide Wafer

GA2268 Gallium-Antimonide Wafer (GaSb)

GA2269 Gallium Phosphide Wafer (GaP)

IN2270 Indium-Antimonide wafer

IN2271 Indium Arsenide Wafer

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Key Performance Parameters
Crystal structure	Cubic
Lattice constant	4.02 A
Density	2.65 (g/cm³)
Melting point	884 °C
Growth method	Bridgeman
Mohs hardness	3 Mohs
Coefficient of thermal expansion	3.195 x ^10-6/°C//c
Refractive index	Nr=1.394; Ne=1.394
Transmission range	0.11-6.5 µm
Standard orientation	<100>, <110>, <111>
Standard dimensions	5x5mm, 10x10mm, Ø1" (25.4mm), Ø4" (100mm) Or as per customer requirements
Standard thickness	0.5mm, 1.0mm, 2.0mm, 5.0mm
Applications of LiF crystals	IR and UV windows, prism and substrate
Polishing	Single-side or double-side polished
Surface quality	Epipolished (Roughness: Ra<5A (5 x 5µm)) Optically polished (Surface quality: 60-40, 40-20 or other)

The main performance parameters
Crystal Structure	Cubic
Lattice Constants	4.02 A
Density	2.65 (g/cm³)
Melting Point	884 °C
Growth Method	Bridgeman
Mohs Hardness	3 Mohs
Coefficient of thermal expansion	3.195 x 10^-6/°C //c
Refractive Index	No=1.394; Ne=1.394
Transmission Band	0.11-6.5um
Standard Orientation	<100>, <110>, <111>
Standard Size	5x5mm, 10x10mm, Dia1"(25.4mm), Dia4"(100mm) Or according to customer's requirements
Standard Thickness	0.5mm, 1.0mm, 2.0mm, 5.0mm
LiF Crystal Application	IR and UV windows, prism and substrate
Polishing	Single side polished or Double side polished
Surface Quality	Epi-polished (Roughness: Ra<5A (5 x 5um)) Optical polished (Surface finish: 60-40, 40-20 or others)
