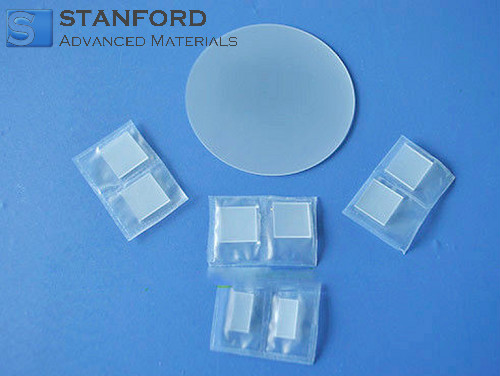

Description of Lithiumaluminate Crystal Substrates
LaAlO2 single crystal is the primary industrially produced, large-scale high-temperature superconducting thin-film substrate material. Single crystals and substrates with diameters of 2 inches or more are produced by using a pull-up method. It is compatible with high-temperature superconducting materials such as YBaCuO and lattice structures, and it exhibits a low dielectric constant and low microwave loss. Consequently, it is used in high-temperature superconducting microwave electronics (for example, high-temperature superconducting microwave filters in telecommunications).

Specifications for Lithiumaluminate Crystal Substrates
Key Performance Parameters
|
Crystal structure
|
Tetragonal system
|
Lattice constant
|
a = 5.17 Å, c = 6.26 Å
|
Melting point (°C)
|
1900
|
Density
|
2.62 (g/cm³)
|
Hardness
|
7.5 (Mohs)
|
Standard dimensions (mm)
|
10x3, 10x5, 10x10, 15x15, 20x15, 20x20 mm
|
Ø20 mm, Ø1′, Ø2′.
|
Thickness
|
0.5 mm, 1.0 mm
|
Polishing
|
Single-sided or double-sided polished
|
Crystal orientation
|
<100>, <001>, <110>
|
Orientation accuracy
|
±0.5°
|
Edge alignment accuracy
|
2° (with some items achieving 1° accuracy)
|
Other crystal angles
|
Custom sizes and orientations are available upon request
|
Roughness (Ra)
|
≤5 Å (5 µm×5 µm)
|
Applications of Lithiumaluminate Crystal Substrates
Lithiumaluminate crystal substrates are used in high-temperature superconducting microwave electronics (for example, in high-temperature superconducting microwave filters in telecommunications).
