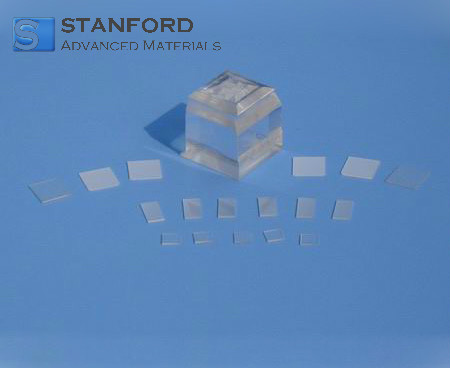

CY2430 crystal substrate manufactured from yttrium oxide stabilised zirconium dioxide (YSZ)

Catalogue Number	CY2430
Dimensions	dia2” ×0.5mm, 25×25×0.5mm, 15×15×0.5mm,10×10×0.5mm
Material	YSZ
Orientation	(100), (110), (111), +/- 0.5 degree
Growth Method	Skull melting, cold crucible method

Stanford Advanced Materials (SAM) supplies YSZ single crystal substrates in various sizes. The sales team responds to enquiries within 24 hours and provides assistance.

INQUIRY

Description

Specification

SDS

LAST RECOMMENDATION

GA2171 Gallium arsenide wafer (GaAs)

NR2172 Gallium Nitride Wafer

CY2173 Sapphire Wafer

CY2174 Silicon wafer

CY2175 Silicon Carbide Wafer

GA2268 Gallium-Antimonide Wafer (GaSb)

GA2269 Gallium Phosphide Wafer (GaP)

IN2270 Indium-Antimonide wafer

IN2271 Indium Arsenide Wafer

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

YSZ Single Crystal Substrate
Crystal Structure	Cubic (a = 5.125 Å)
Density	5.8 g/cm³
Purity	99.99%
Thermal Expansion Coefficient	10.3 ppm/℃
Dielectric Constant	27
Orientation	<100>, <110>, <111> ± 0.5°, or customised orientation
Dimensions	Ø2" × 0.5 mm, 25 × 25 × 0.5 mm, 15 × 15 × 0.5 mm, 10 × 10 × 0.5 mm, 10 × 5 × 0.5 mm, 5 × 5 × 0.5 mm
Polishing	Single-side or double-side polished
Surface Roughness	≤5 Å
Packaging	100 clean bags, individual or multi-chip wafer box

YSZ single-crystal substrate
Crystal structure	cubic（a=5.125Å ）
Density	5.8g/cm3
purity	99.99%
Thermal expansivity	10.3ppm/℃
Dielectric constant	27
Orientation	<100>、<110>、<111>±0.5o，or special orientation
Size	dia2” ×0.5mm, 25×25×0.5mm, 15×15×0.5mm,10×10×0.5mm, 10×5×0.5mm, 5×5×0.5mm
Polished	One side or double side polished
Surface roughness	≤5Å
Package	100 clean bags, single or multi-chip wafer box

CY2430 crystal substrate manufactured from yttrium oxide stabilised zirconium dioxide (YSZ)
