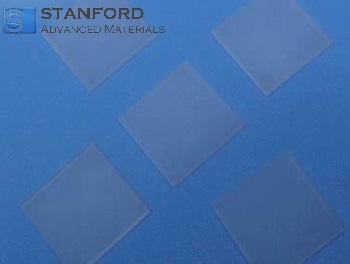

CY2488 Lanthanum Fluoride (LaF3) Crystal Substrate

Catalogue Number	CY2488
Dimensions	10 x 10x 0.5mm 1sp; 10 x 10 x 0.5mm; Ori.Dia x 0.5
Material	LaF3
Orientation	(100) (110) +/- 0.5o
Growth Method	Bridgman

Lanthanum fluoride crystal substrates are frequently employed as prism substrates for infrared and ultraviolet windows. Stanford Advanced Materials (SAM) provides a range of LaF3 single crystal substrates.

INQUIRY

Description

Specification

LAST RECOMMENDATION

GA2171 Gallium arsenide wafer (GaAs)

NR2172 Gallium Nitride Wafer

CY2173 Sapphire Wafer

CY2174 Silicon wafer

CY2175 Silicon Carbide Wafer

GA2268 Gallium-Antimonide Wafer (GaSb)

GA2269 Gallium Phosphide Wafer (GaP)

IN2270 Indium-Antimonide wafer

IN2271 Indium Arsenide Wafer

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

LaF3 Single Crystal Substrate
Crystal structure	Trigonal: a = b = 7.190 Å, c = 7.367 Å, α = β = 90°; γ = 120°
Growth method	Bridgman
Melting point	1493 °C
Crystal purity	> 99.9%
Crystal growth orientation	< 0001 >
Density	5.936 g/cm³
Hardness	4.5 (M)
Thermal expansion	11.9 ×10⁻⁶/K (c-axis) and 15.8 ×10⁻⁶/K (a-axis)
Polishing	One-sided EPI polish is applied through CMP technology to minimise damage to the substrate’s underside.
Packaging	Packaged in a 100° plastic bag within a Class 1 000 cleanroom environment.

LaF3 Single-crystal Substrate
Crystal Structure	Trigonal: a= b= 7.190 A, c=7.367 A, alpha=beta =90^o, gama =120^o
Growth Method	Bridgman
Melting Point	1493 ^oC
Crystal Purity	> 99.9%
Crystal Growth Direction	< 0001 >
Density	5.936 g/cm³
Hardness	4.5 (M)
Thermal Expansion	11.9 x10^-6/ K // c15.8 x10^-6/ K // a
Polish	One side EPI polished by CMP technology with less sub-surface lattice damage.
Pack	Packed in 100 grade plastic bag under 1000 class clean room.
