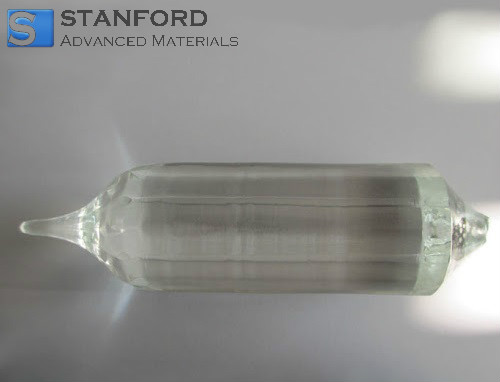

Discontinued (Discontinued) CY2491 Yttrium-Aluminium Garnet (YAG) Crystal Substrate

Catalogue Number	CY2491
Dimensions	dia2” ×0.5mm, 10×10×0.5mm
Material	YAG
Orientation	(100), (110), (111), +/- 0.5 degree
Thickness	0.5 mm or 1.0 mm or customized

Yttrium-Aluminium-Garnet crystal substrate is a material used in ultraviolet (UV) and infrared (IR) optical applications. SAM offers a range of monocrystalline YAG substrate sizes. The professional sales team responds within 24 hours and delivers courteous service.

INQUIRY

Description

Specification

Reviews

LAST RECOMMENDATION

NR2172 Gallium Nitride Wafer

CY2173 Sapphire Wafer

CY2174 Silicon wafer

CY2175 Silicon Carbide Wafer

SC2275 Silicon Thermal Oxide Wafers Supplier

SC2276 SOI-Wafer

ZN2277 Substrate for Zinc Oxide Wafer

Potassium Tantalate (KTaO3) Crystal Substrates

CY2298 Potassium Tantalate (KTaO3) Crystal Substrate

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

I would like to join the mailing list to receive updates from Stanford Advanced Materials.

Please enclose drawings:

Save files here or

* Check Code

Accepted file types: PDF, png, jpg, jpeg. Upload multiple files at once; each file must be under 2MB.

Optical Property
Refractive index, at 1 064 µm	1.82
Reflection loss, % for two surfaces at 1 064 µm	16.7%
Thermo-optic coefficient (dn/dT), at 633 nm	7.3 x ^10-6 x ^°K-1
Density, ^g/cm3 (20°C)	4.56
Solubility	Insoluble in water
Type of material	Single crystal, synthetic
Crystal structure	Cubic
Melting point, °C	1940
Thermal conductivity, W x ^cm-1 x ^°K-1	0.14
Specific heat capacity, J/(kg - K) at 0°C	590
Dielectric constant	11.7
Elastic modulus (E), GPa	300
Hardness (Mohs)	~8.5

Optical Property
Refractive Index, at 1.064 µm	1.82
Reflection Loss, % for two surfaces at 1.064 µm	16.7%
Termooptical Factor (dn/dT), at 633 nm	7.3 x 10^-6 x °K^-1
Density, g/cm³ (20°C)	4.56
Solubility	Insoluble in water
Type of Material	single crystal, synthetic
Crystal Structure	cubic
Melting Point, at °C	1940
Thermal Conductivity, W x cm^-1 x °K^-1	0.14
Specific Heat Capacity, J/(kg · K) at 0 °C	590
Dielectric Constant	11.7
Young´s Modulus (E), GPa	300
Hardness (Mohs)	~8,5
