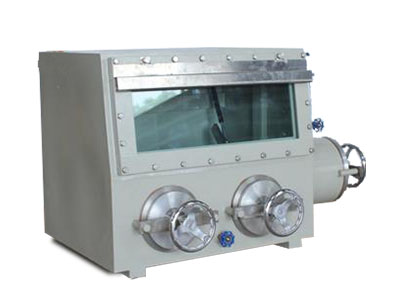

Specifications of our stainless steel glove box for lithium battery research:
-High-purity cleaning system
-Sealed environment
-Stable and wear‐resistant construction
-Parameters
Model/Part Name |
ZKX-1 |
ZKX-2 |
ZKX-3 |
Overall L×W×H (mm) |
985×660×690 |
1 250×810×740 |
1 705×870×1 020 |
Cabinet L1×W1×H1 (mm) |
600×500×650 |
800×650×700 |
1 200×700×980 |
Internal box free space (mm) |
410×420×610 |
610×570×660 |
1 010×620×940 |
Transition space (mm) |
ϕ220×280 |
ϕ280×350 |
ϕ350×400 |
Glove port (mm) |
ϕ152 |
Vacuum level |
±0.1 MPa, dwell time: 12 hours |
-The operating box mainly comprises the main cabinet, the additional space and the pedestal. Given that other specific requirements may arise, the design can be adapted accordingly.
-There are two to three glove interfaces on the main cabinet.
-The front of the control cabinet is made of acrylic glass, thereby allowing the operator to observe the enclosure process from a wide angle.
-Two vacuum ball valves (one internal and one external) are installed on the box; the operator may use these for specific operating requirements such as water injection or ventilation.
-The cabinet is fitted with light bulbs and ventilated sockets.
Applications:
The stainless steel glove box is suitable for use in:
- Anhydrous, anaerobic and clean, ultra‐pure working environments
- Research and production of batteries and battery materials (lithium‐ion batteries, batteries, solar cells, lithium iron phosphate, etc.)
- Research and manufacture of specialised lamps: HID lamps, metal halide and ceramic metal halide
- Welding: resistance welding, TIG welding, laser welding, plasma welding, brazing
- Research and manufacture of OLEDs.
- Manufacture of medical materials
- Manufacture of supercapacitors
- Fine chemicals and the nuclear industry
- Development and manufacture of new energy types and materials
Packaging and Delivery
Export wooden crate
25 days after receipt of payment
