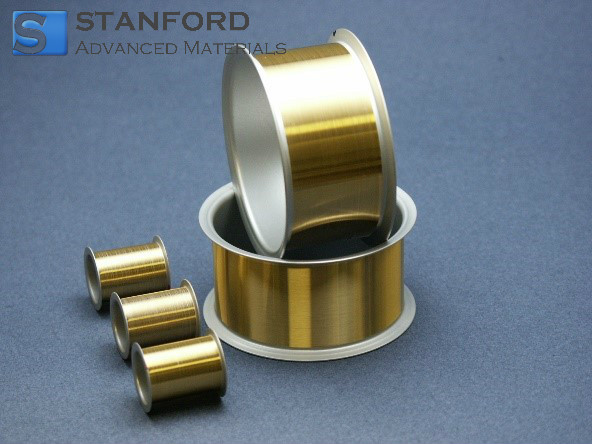

AU2029 Gold Bonding Wire

Catalogue Number	AU2029
Material	Pure gold (Au)
Purity	2N-4N
Diameter	13-70μm
Length	100-500m

We can adjust the diameter of gold bonding wires to meet each customer’s specification. Calibrated instruments are used to verify the wire diameters. Stanford Advanced Materials (SAM) supplies metal bonding wires.

Other related products include copper bonding wire and aluminium bonding wire. They also include silver bonding wire and silver alloy bonding wire.

INQUIRY

Description

Specification

Video

LAST RECOMMENDATION

AU0449 Gold Crucible

VD0550 Gold (Au) Evaporation Materials

CY1031 Organometallic Gold Catalyst (Au Catalyst)

AU1999 Gold (III) oxide powder (CAS No. 1303-58-8)

AU2000 Gold (III) Bromide Powder (CAS No. 10294-28-7)

AU2001 Gold(III) chloride powder, AuCl3 (CAS No. 13453-07-1)

AU2002 Hydrogen Tetrabromoaurate(III) Hydrate Powder (CAS No. 1184171-66-1)

AU2003 Gold(III)-Chloride Trihydrate Powder (CAS No. 16961-25-4)

AU2022 Gold Nanorods

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Mechanical Properties
Diameter		EL%	Properties
Diameter			BL (CN)
µm	mil		AUBW02	AUBW03/AUBW06	AUBWD05/AUBWD07	AUBWD01/AUBWD03/AUBWD99/ AUBWD06/AUBW10
13	0.5	2-5	/	>2.5	>2.5	>3.0
14	0.55	2-5	/	>3.0	>3.0	>3.0
15	0.6	2-5	/	>3.0	>3.5	>4.0
16	0.63	2-5	>2.5	>3.0	>3.5	>4.0
17	0.67	2-5	>2.5	>3.0	>3.5	>4.0
18	0.7	2-5	>2.5	>3.5	>4.0	>5.0
19	0.75	2-6	>3.0	>4.0	>4.5	>5.5
20	0.8	2-6	>4.0	>4.5	>6.0	>6.0
21	0.83	2-6	>4.5	>5.0	>6.0	>6.5
22	0.87	2-7	>4.5	>5.5	>6.0	>7.0
23	0.9	2-7	>5.0	>6.0	>7.0	>8.0
24	0.94	2-7	>6.0	>6.5	>7.5	>9.0
25	1	2-8	>7.0	>8.0	>10.0	>10.0
28	1.1	2-8	>9.0	>10.0	>12.0	>11.0
30	1.2	3-8	>11.0	>12.0	>13.0	>15.0
32	1.25	3-8	>12.0	>13.0	>15.0	>16.0
33	1.3	3-8	>13.0	>14.0	>16.0	>18.0
35	1.4	3-10	>15.0	>16.0	>18.0	>22.0
38	1.5	3-10	>17.0	>18.0	>21.0	>22.0
40	1.57	3-10	>20.0	>22.0	>24.0	>26.0
45	1.8	3-12	>24.0	>25.0	>28.0	>30.0
50	2	3-12	>30.0	>32.0	>34.0	>36.0
60	2.4	7-14	>43.0	>45.0	>50.0	>52.0
70	2.8	7-14	>50.0	>55.0	>60.0	>63.0

Theoretical Physical Properties
Density	19.34 g/cm³
Melting Point	1063℃
Electrical Resistivity @20℃	2.3 μΩ·cm
Electrical Conductivity @20℃	75% (IACS)
Thermal Conductivity @20℃	315 W/(m·K)
Fusing Current (10 mm x 25 μm)	0.52 A

Composition	Diameter		Tensile Strength	Elongation
Composition	mil	μm	gms	%
99.99%Au	0.7	17.5	3-10	2-6
	0.8	20	4-13	2-7
	0.9	22.5	5-16	2-8
	1.0	25	6-20	2-8
	1.3	32.5	10-45	2-10
	1.5	37.5	13-50	2-12
	1.7	42.5	15-60	2-12
	1.8	45	20-70	2-12
	2.0	50	25-85	2-15
	3.0	75	50-180	2-20
