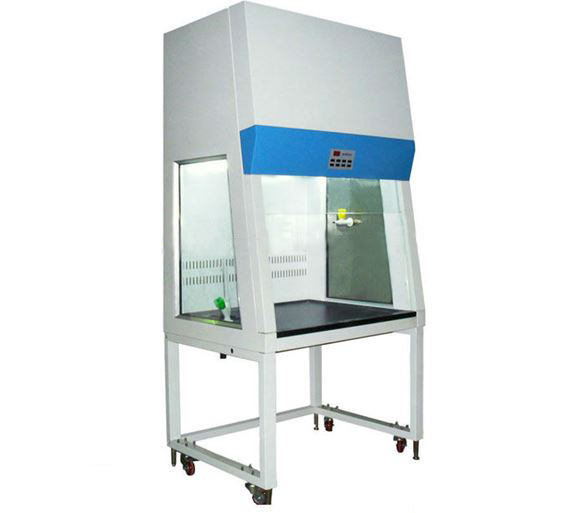

Discontinued LAB1061 (Discontinued) Ductless Extraction Hood

Name: LAB1061 (Discontinued) Ductless Extraction Hood
Brand: Stanford Advanced Materials (SAM)
SKU: LAB1061
Availability: InStock

(Expired)

Stanford Advanced Materials (SAM) supplies laboratory instruments to research institutions and commercial enterprises. The company provides products for various applications, including a ductless fume cupboard, laboratory instruments, laboratory spectrophotometers, laboratory ultrasonic cleaners, etc.

INQUIRY

Description

Specification

Reviews

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

I would like to join the mailing list to receive updates from Stanford Advanced Materials.

Please enclose drawings:

Save files here or

* Check Code

Accepted file types: PDF, png, jpg, jpeg. Upload multiple files at once; each file must be under 2MB.

Catalogue No.	FH0001	FH0002	FH0003
External Dimensions (W x H x D)	10008002200 mm	15008002200 mm	12008002200 mm
Internal Dimensions (W x H x D)	800745750 mm	1380745750 mm	1082735740 mm
Maximum Opening	450 mm
Air Velocity	0.3-0.8 m/s
Noise	≤60 dB		≤57 dB
Fan	Built-in centrifugal fan; Speed adjustable	Built-in centrifugal fan; Speed adjustable	External centrifugal fan; Rotational speed adjustable
Fluorescent Lamp	15W*1	36W*1	18W*1
UV Lamp	30W*1	30W*2	20W*1
Glass Window	5 mm toughened glass; motorised; height-adjustable
Material	External casing: cold-rolled steel plate with corrosion-resistant coating; Side wall: glass; Workbench: solid, chemically resistant physico-chemical board
Base	650 mm		690 mm
Power Supply	110/220V ±10%; 50/60Hz (selectable)
Consumption	150W	235W	150W
Standard Accessories	4 m PVC pipe (Φ300 mm); Tap1; Gas tap1; Water sink1; Base1 Waterproof socket*2 (800W); Activated carbon filter Foot switch
Optional Accessories	Infrared steriliser;
Gross Weight	230 kg	370 kg	320 kg

Catalog No.	FH0001	FH0002	FH0003
External Size *(WHD)*	10008002200mm	15008002200mm	12008002200 mm
Internal Size *(WHD)*	800745750mm	1380745750mm	1082735740mm
Max opening	450mm
Air Velocity	0.3-0.8m/s
Noise	≤60dB		≤57dB
Blower	Built-in Centrifugal Blower; Speed Adjustable	Built-in Centrifugal Blower; Speed Adjustable	External Centrifugal Blower; Speed Adjustable
Fluorescent Lamp	15W*1	36W*1	18W*1
UV Lamp	30W*1	30W*2	20W*1
Glass Window	5mm toughened glass; motorized; height adjustable
Material	Exterior Body: Cold-roll steel plate with corrosion-proof coating; Side panel: Glass; Work table: Solid Chemical-resistant physiochemical board
Base Stand	650mm		690mm
Power Supply	110/220V ±10%;50/60Hz (optional)
Consumption	150W	235W	150W
Standard Accessories	4m PVC Duct (Φ300mm); Water Tap1; Gas Tap1; Water Sink1; Base Stand1 Waterproof Socket*2(800W); Active Carbon Filter Foot Switch
Optional Accessories	Infrared Sterilizer;
Gross Weight	230 Kg	370 Kg	320Kg
