Description:
A spectrophotometer measures either the quantity of light reflected from a sample or the quantity of light absorbed by a sample. A single-beam instrument can measure a wider range of light frequencies compared to a double-beam spectrophotometer.

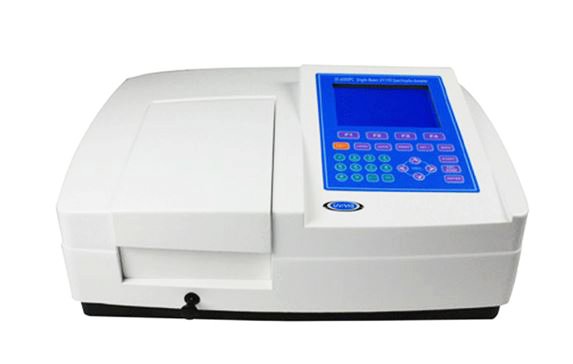

Our single-beam UV-Vis spectrophotometer has a stray light percentage below 0.05%T. It is equipped with an LCD display and an on-board data storage facility.

Specifications of the Single-beam UV-Vis Spectrophotometer:
Catalogue No.
|
SU0001S
|
Wavelength range
|
190-1100 nm
|
Bandwidth
|
1.8 nm
|
Wavelength accuracy
|
±0.5 nm
|
Wavelength repeatability
|
0.3 nm
|
Photometric accuracy
|
±0.3%T
|
Photometric repeatability
|
0.2%T
|
Photometric range
|
-0.3-3A, 0-200%T, 0-9999C
|
Stability
|
± 0.002A/h at 500 nm
|
Baseline flatness
|
± 0.002A/h
|
Noise
|
± 0.001A/h
|
Stray light
|
≤0.05%T @ 220 nm, 360 nm
|
Data output
|
USB
|
Printer interface
|
Parallel port
|
Display
|
320 x 240 pixel LCD
|
Lamps
|
D2 lamp & W lamp
|
Detector
|
Silicon photodiode
|
Power requirements
|
AC 220V/50Hz or 110V/60Hz
|
Dimensions
|
460*380*180 mm
|
Weight
|
20 kg
|
Packaging of the SAM Laboratory Spectrophotometer:
Our laboratory spectrophotometers are securely packaged in double cardboard boxes. They are clearly marked and labelled externally, thereby facilitating efficient identification and quality control. Measures are taken to prevent any damage during storage or transport.
